ISCA-3102146

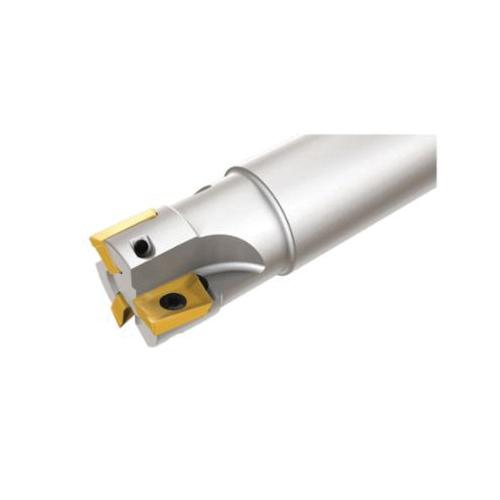

Iscar 3102146 HELI2000 Square Shoulder Indexable End Mill ANSI Code: HM90 E90A-D1.00-3-C1.00-B 1 in Dia Cutting Cylindrical Shank AP.. Insert 90 deg Lead Angle 0.394 in Max Depth of Cut
Product information
Description
Iscar Indexable End Mill Square Shoulder Series: HELI2000 1 in Cutting Dia 7.87 in Overall Length 0.394 in Maximum Depth of Cut AP.. Insert 3 Inserts Insert Compatibility: HM90 AP.. 1003... 1.57 in Head Length 1 in Shank Dia Cylindrical Shank ANSI Code: HM90 E90A-D1.00-3-C1.00-B ISO Code: HM90 E90A-D1.00-3-C1.00-B 90 deg Lead Angle No
Additional details
Attributes
- ANSI Code: HM90 E90A-D1.00-3-C1.00-B
- Cutting Diameter: 1 in
- Insert Compatibility: HM90 AP.. 1003...
- Maximum Depth of Cut: 0.394 in
- Number of Inserts: 3
- Overall Length: 7.87 in
- Series: HELI2000
- Shank Diameter: 1 in
- Shank Type: Cylindrical
- Through Coolant (Yes/No): No
