ISCA-3102144

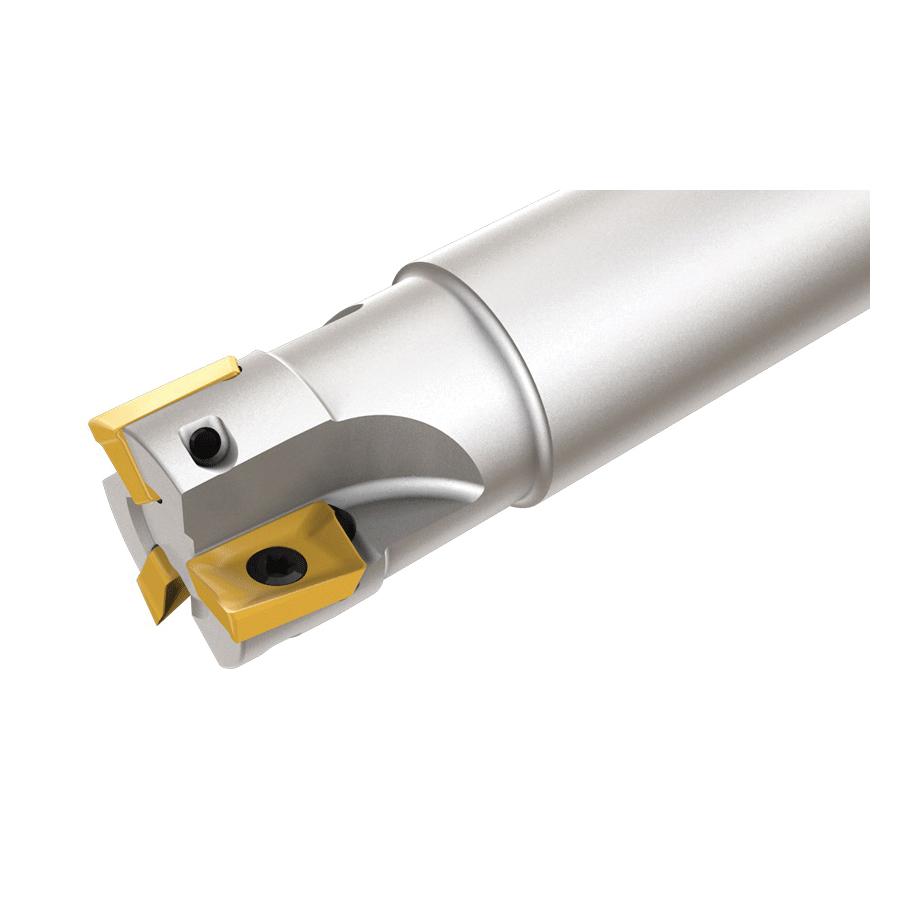

Iscar 3102144 HELI2000 Indexable End Mill ANSI Code: HM90 E90A-D1.00-3-W1.00XL 1 in Dia Cutting Welded-On Shank 90 deg Lead Angle 0.394 in Max Depth of Cut
Product information
Description

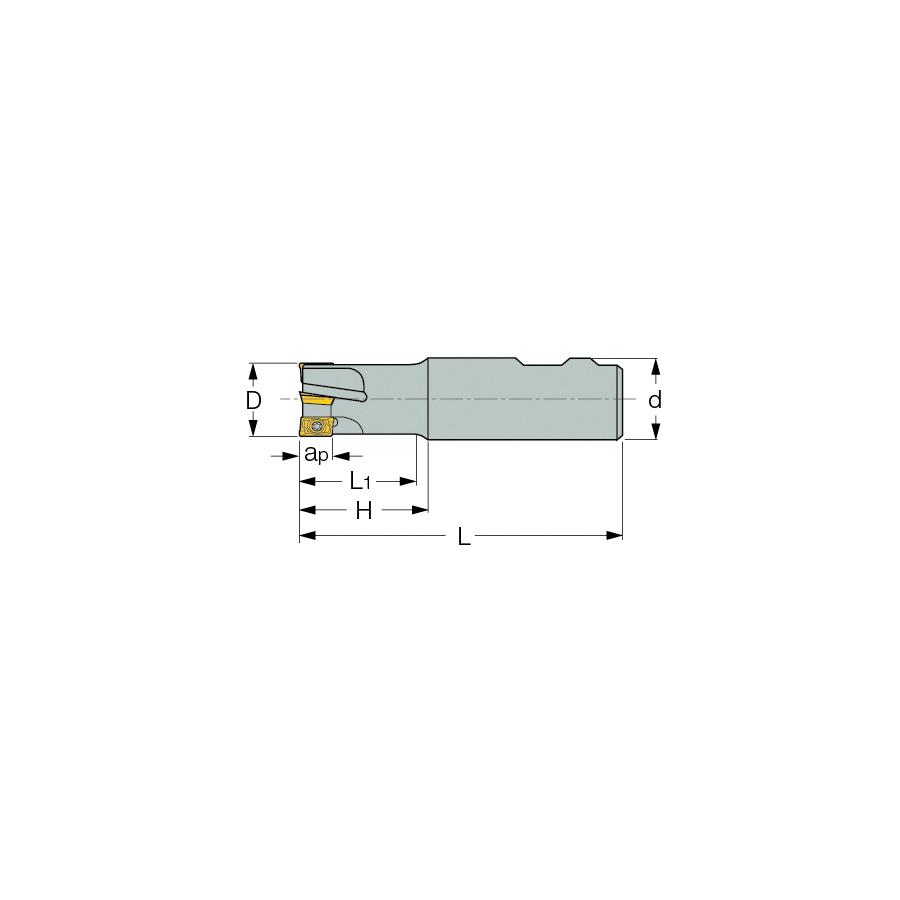

Iscar Indexable End Mill Series: HELI2000 1 in Diameter Cutting 5.51 in Overall Length 0.394 in Maximum Depth of Cut 3 Inserts Insert Compatibility: AP..1003.. and HM90 AP.. 1003.. 3.15 in Head Length 1 in Shank Diameter Welded-On Shank ANSI Code: HM90 E90A-D1.00-3-W1.00XL ISO Code: HM90 E90A-D1.00-3-W1.00XL 90 deg Lead Angle No Through Coolant
Additional details
Attributes
- ANSI Code: HM90 E90A-D1.00-3-W1.00XL
- Cutting Diameter: 1 in
- Insert Compatibility: AP..1003.. and HM90 AP.. 1003..
- Maximum Depth of Cut: 0.394 in
- Number of Inserts: 3
- Overall Length: 5.51 in
- Series: HELI2000
- Shank Diameter: 1 in
- Shank Type: Welded-On
- Through Coolant (Yes/No): No
