ISCA-3102143

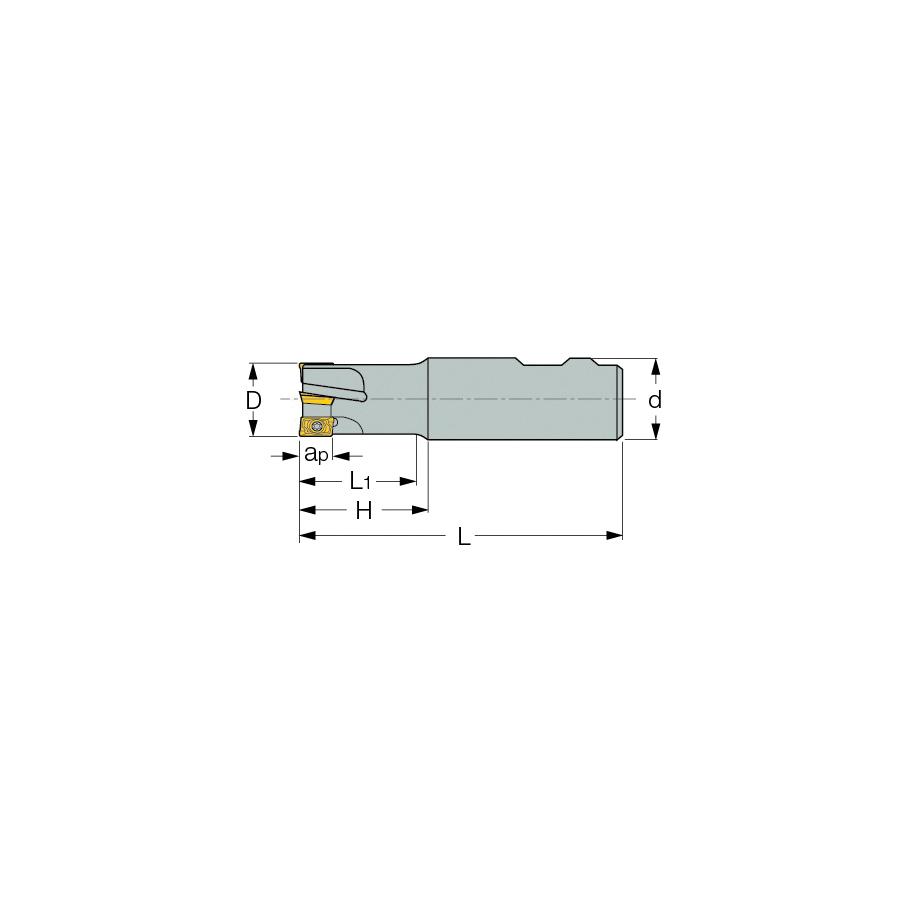

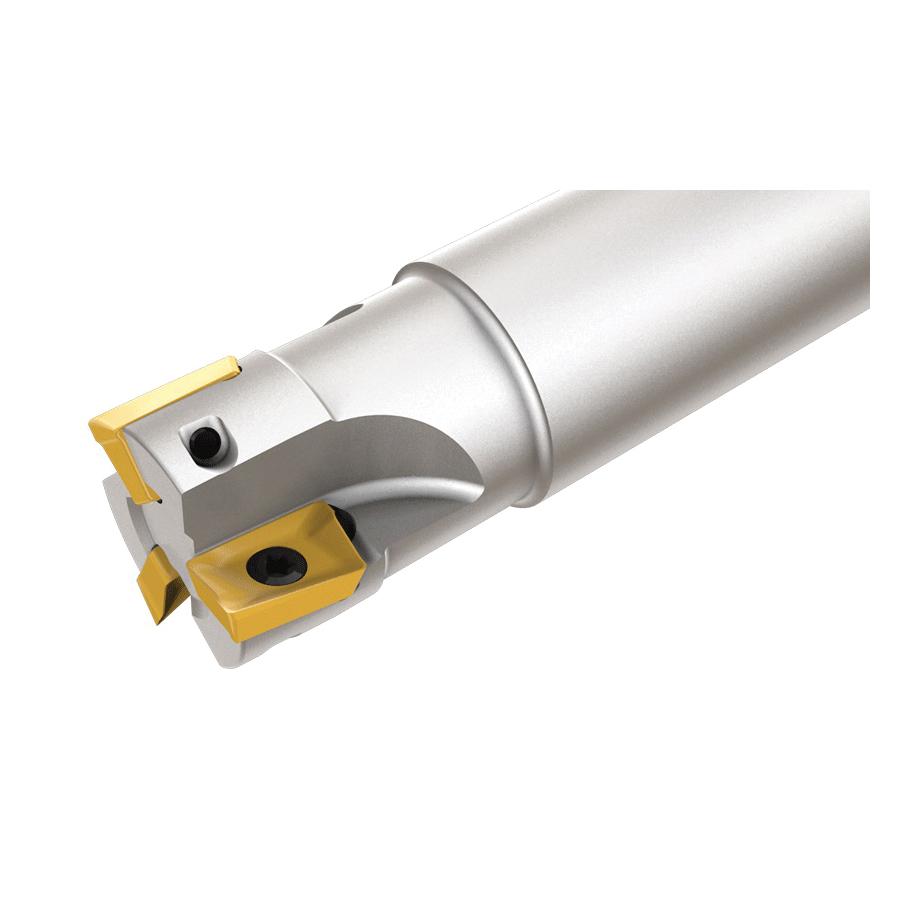

Iscar 3102143 HELI2000 Indexable End Mill ANSI Code: HM90 E90A-D.75-2-W.75-XL 3/4 in Dia Cutting Welded-On Shank 90 deg Lead Angle 0.394 in Max Depth of Cut

Product information

Description

Iscar Indexable End Mill Series: HELI2000 3/4 in Diameter Cutting 4-3/4 in Overall Length 0.394 in Maximum Depth of Cut 2 Inserts Insert Compatibility: AP..1003.. and HM90 AP.. 1003.. 2 in Head Length 3/4 in Shank Diameter Welded-On Shank ANSI Code: HM90 E90A-D.75-2-W.75-XL ISO Code: HM90 E90A-D.75-2-C.75-LB 90 deg Lead Angle No Through Coolant

LoginRequest an account

Additional details

Attributes

  • ANSI Code: HM90 E90A-D.75-2-W.75-XL
  • Cutting Diameter: 3/4 in
  • Insert Compatibility: AP..1003.. and HM90 AP.. 1003..
  • Maximum Depth of Cut: 0.394 in
  • Number of Inserts: 2
  • Overall Length: 4-3/4 in
  • Series: HELI2000
  • Shank Diameter: 3/4 in
  • Shank Type: Welded-On
  • Through Coolant (Yes/No): No
