ISCA-3102078

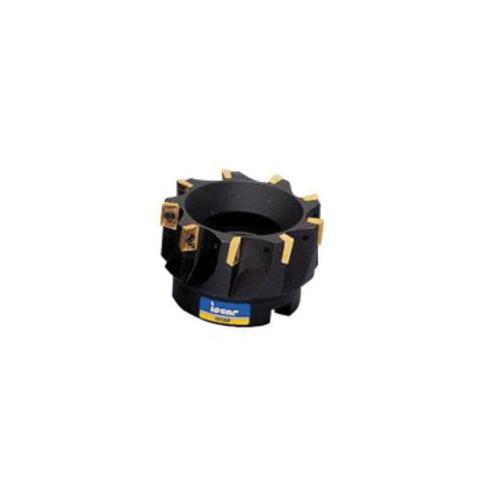

Iscar 3102078 HM90 Square Shoulder Indexable End Mill ANSI Code: HM90 F90AP D2.00-6-.75 2 in Dia Cutting AP.. Insert Right Hand Cutting 90 deg Lead Angle 0.39 in Max Depth of Cut
Product information
Description
Iscar Indexable End Mill Square Shoulder Series: HM90 2 in Cutting Dia 1.57 in Overall Length 0.39 in Maximum Depth of Cut AP.. Insert 6 Inserts Insert Compatibility: HM90 APKT 1003... AP..1003.. HM90 AP..1003.. 3/4 in Shank Dia Right Hand Cutting ANSI Code: HM90 F90AP D2.00-6-.75 ISO Code: HM90 F90AP D2.00-6-.75 90 deg Lead Angle No
Additional details
Attributes
- ANSI Code: HM90 F90AP D2.00-6-.75
- Cutting Diameter: 2 in
- Insert Compatibility: HM90 APKT 1003... AP..1003.. HM90 AP..1003..
- Maximum Depth of Cut: 0.39 in
- Number of Inserts: 6
- Overall Length: 1.57 in
- Series: HM90
- Shank Diameter: 3/4 in
- Through Coolant (Yes/No): No
