ISCA-3101876

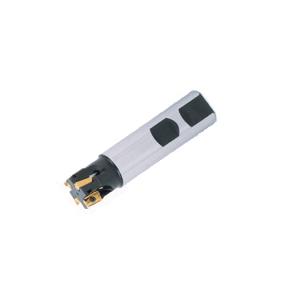

Iscar 3101876 HELI2000 Indexable End Mill ANSI Code: HM90 E90AD-D1.0-2-W1.00 1 in Dia Cutting Welded-On Shank 0.56 in Max Depth of Cut

Product information

Description

Iscar Indexable End Mill Series: HELI2000 1 in Diameter Cutting 4 in Overall Length 0.56 in Maximum Depth of Cut 2 Inserts Insert Compatibility: AD..1505.. HM90 ADKT-1505... 1-1/2 in Head Length 1 in Shank Diameter Welded-On Shank 2.38 in Shank Length ANSI Code: HM90 E90AD-D1.0-2-W1.00 ISO Code: HM90 E90AD-D1.0-2-W1.00 No Through Coolant

LoginRequest an account

Additional details

Attributes

  • ANSI Code: HM90 E90AD-D1.0-2-W1.00
  • Cutting Diameter: 1 in
  • Insert Compatibility: AD..1505.. HM90 ADKT-1505...
  • Maximum Depth of Cut: 0.56 in
  • Number of Inserts: 2
  • Overall Length: 4 in
  • Series: HELI2000
  • Shank Diameter: 1 in
  • Shank Type: Welded-On
  • Through Coolant (Yes/No): No
