ISCA-3100735

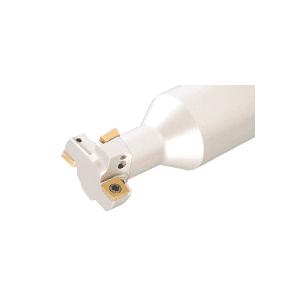

Iscar 3100735 T-Slot Indexable End Mill ANSI Code: ETS D125-050W.62-10 1.238 in Dia x 0.498 in W Cutting XPMT-HQ Insert 0.498 in Max Depth of Cut ETS Toolholder
Product information
Description
Iscar Indexable End Mill T-Slot 1.238 in Diameter Cutting 3-1/2 in Overall Length 0.498 in Cutting Width XPMT-HQ Insert 4 Inserts Insert Compatibility: XPMT 100408-HQ XPMT 100408T-HQ 5/8 in Shank Diameter Welded-On Shank 0.498 in Maximum Depth of Cut ETS Toolholder ANSI Code: ETS D125-050W.62-10 7000208 Insert Gage Screw
Additional details
Product details
- Positive flank Very positive rake angle and sharp cutting edge for machining aluminum Chipbreaker on one side with hole and countersink
Attributes
- ANSI Code: ETS D125-050W.62-10
- Cutting Diameter: 1.238 in
- Insert Compatibility: XPMT 100408-HQ XPMT 100408T-HQ
- Maximum Depth of Cut: 0.498 in
- Number of Inserts: 4
- Overall Length: 3-1/2 in
- Shank Diameter: 5/8 in
- Shank Type: Welded-On
- Series: ISOTURN
- Shape:
