ISCA-3100402

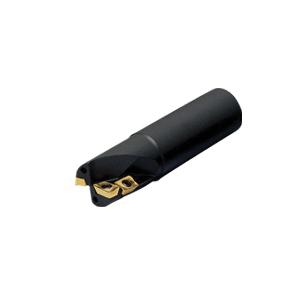

Iscar 3100402 HELIMILL Indexable End Mill ANSI Code: E90AC D1.00-.75W1.0 1 in Dia Cutting Welded-On Shank 3/4 in Max Depth of Cut
Product information
Description
Iscar Indexable End Mill Series: HELIMILL 1 in Diameter Cutting 4.33 in Overall Length 3/4 in Maximum Depth of Cut 3 Inserts Insert Compatibility: AP.T 1003.. APKT and ADKT 1.97 in Head Length 1 in Shank Diameter Welded-On Shank ANSI Code: E90AC D1.00-.75W1.0 ISO Code: E90AC D1.00-.75W1.0 No Through Coolant
Additional details
Product details
- Face mills carrying round inserts with serrated cutting edges or regular round inserts Used for rough machining applications on small dies and low power machines
Attributes
- ANSI Code: E90AC D1.00-.75W1.0
- Cutting Diameter: 1 in
- Insert Compatibility: AP.T 1003.. APKT and ADKT
- Maximum Depth of Cut: 3/4 in
- Number of Inserts: 3
- Overall Length: 4.33 in
- Series: HELIMILL
- Shank Diameter: 1 in
- Shank Type: Welded-On
- Through Coolant (Yes/No): No
