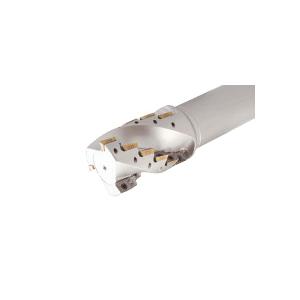

ISCA-3100275

Iscar 3100275 HELIMILL Extended Flute Indexable End Mill ANSI Code: APK D1.25-1.75W1.25FE 1-1/4 in Dia Cutting Straight Shank 90 deg Lead Angle 1.86 in Max Depth of Cut

Product information

Description

Iscar Indexable End Mill Extended Flute Series: HELIMILL 1-1/4 in Cutting Dia 4-1/2 in Overall Length 1.86 in Maximum Depth of Cut 12 Inserts Insert Compatibility: AP.T 1003.. 2.12 in Head Length 1-1/4 in Shank Dia Straight Shank 1.77 in Shank Length ANSI Code: APK D1.25-1.75W1.25FE ISO Code: APK D1.25-1.75W1.25FE 90 deg Lead Angle No

LoginRequest an account

Additional details

Attributes

  • ANSI Code: APK D1.25-1.75W1.25FE
  • Cutting Diameter: 1-1/4 in
  • Insert Compatibility: AP.T 1003..
  • Maximum Depth of Cut: 1.86 in
  • Number of Inserts: 12
  • Overall Length: 4-1/2 in
  • Series: HELIMILL
  • Shank Diameter: 1-1/4 in
  • Shank Type: Straight
  • Through Coolant (Yes/No): No
