ISCA-3100044

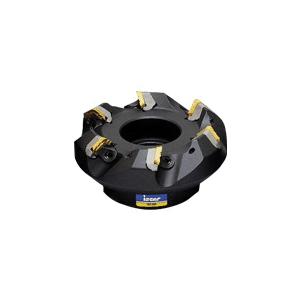

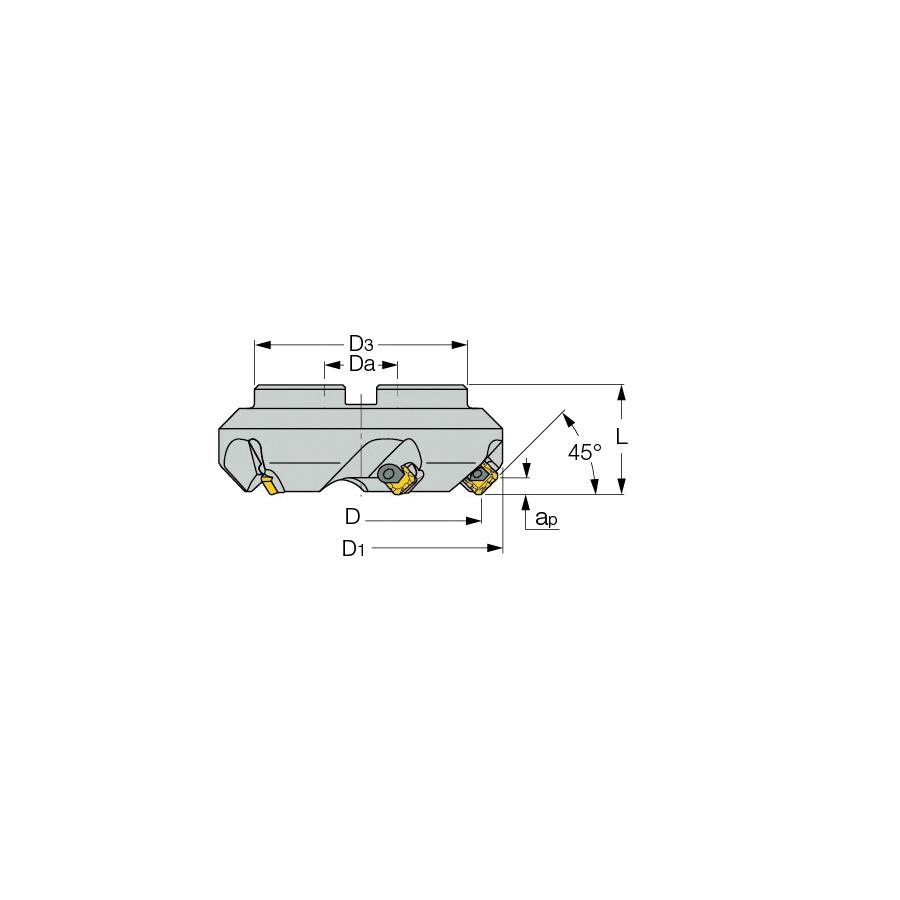

Iscar 3100044 F45E Chamfer and Angle Indexable Face Mill ANSI Code: F45E D 6.0 -2.00 6 in Dia Cutting 2 in Dia Shank 2 in OAL 0.23 in Max Depth of Cut 2 in Dia Arbor Hole 45 deg Lead Angle

Product information

Description

Iscar Indexable Face Mill Chamfer and Angle Series: F45E 6 in Cutting Dia 2 in Overall Length 0.23 in Maximum Depth of Cut 7 Inserts Insert Compatibility: SEKN/R 12... 2 in Shank Dia Arbor B Shank 2 in Arbor Hole 45 deg Lead Angle Right Hand Cutting ANSI Code: F45E D 6.0 -2.00 No

Additional details

Attributes

  • ANSI Code: F45E D 6.0 -2.00
  • Cutting Diameter: 6 in
  • Insert Compatibility: SEKN/R 12...
  • Maximum Depth of Cut: 0.23 in
  • Number of Inserts: 7
  • Overall Length: 2 in
  • Series: F45E
  • Shank Diameter: 2 in
  • Shank Type: Arbor B
  • Through Coolant (Yes/No): No
