ISCA-2300959

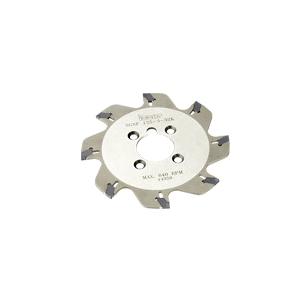

Iscar 2300959 SELF-GRIP Indexable Slitting Cutter ANSI Code: SGSF 250-5-40K GSFN Insert 250 mm Dia Cutting 84 mm Max Depth of Cut
Product information
Description
Iscar Indexable Slitting Cutter Series: SELF-GRIP 250 mm Cutting Dia 84 mm Maximum Depth of Cut GSFN Insert ANSI Code: SGSF 250-5-40K
Additional details
Product details
- 90 deg angle 320 rpm maximum speed 40 mm arbor hole diameter 80 mm holder diameter 4 mm blade width 4 mm seat width 18 teeth 4.53 to 5.5 mm cutting width
Attributes
- ANSI Code: SGSF 250-5-40K
- Cutting Diameter: 250 mm
- Maximum Depth of Cut: 84 mm
- Series: SELF-GRIP
