CLEC-46181

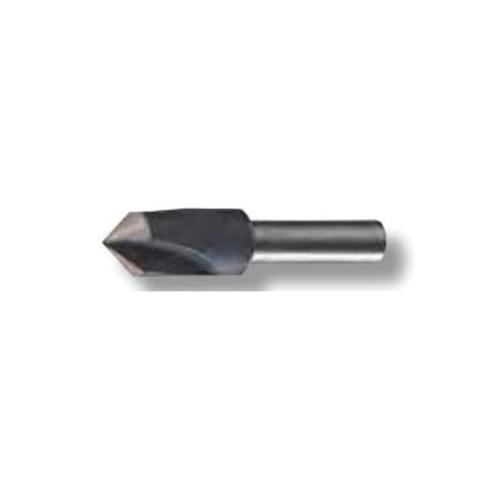

Cleveland® C46181 1003 General Purpose Single End Countersink 1 in Dia Body 1/2 in Dia Shank 3 Flutes 82 deg Included HSS
Product information
Description
Cleveland® Countersink General Purpose Single End Series: 1003 1 in Diameter Body 2-3/4 in Overall Length Straight Shank 1/2 in Shank Diameter 3 Flutes Right Hand Cutting Direction 82 deg Included Angle 41 deg Centerline Angle HSS Steam Oxide
Additional details
Product details
- The pre-drilled hole for countersinking should not be less than 10 of the countersink diameter Use multi-flute countersinks for much larger holes Run countersinks at 50 to 66 of recommended drill speeds
Attributes
- Body Diameter: 1 in
- Centerline Angle: 41 deg
- Cutting Direction: Right Hand
- Finish: Steam Oxide
- Included Angle: 82 deg
- Material: HSS
- Number of Flutes: 3
- Overall Length: 2-3/4 in
- Series: 1003
- Shank Diameter: 1/2 in
