CLEC-46168

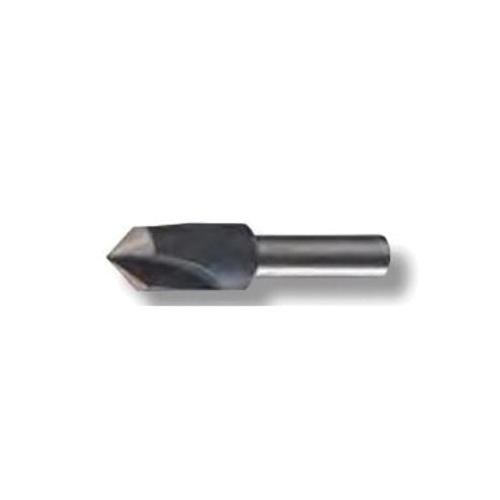

Cleveland® C46168 1003 General Purpose Single End Countersink 5/8 in Dia Body 3/8 in Dia Shank 3 Flutes 60 deg Included HSS
Product information
Description
Cleveland® Countersink General Purpose Single End Series: 1003 5/8 in Diameter Body 2-1/4 in Overall Length Straight Shank 3/8 in Shank Diameter 3 Flutes Right Hand Cutting Direction 60 deg Included Angle 30 deg Centerline Angle HSS Steam Oxide
Additional details
Product details
- The pre-drilled hole for countersinking should not be less than 10 of the countersink diameter Use multi-flute countersinks for much larger holes Run countersinks at 50 to 66 of recommended drill speeds

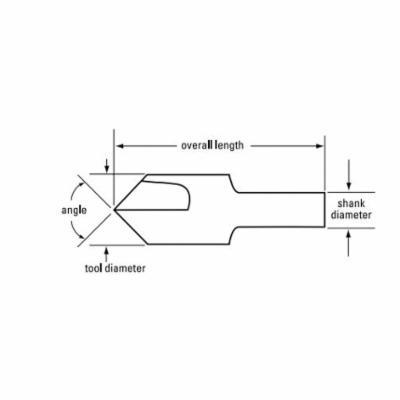

Attributes
- Body Diameter: 5/8 in
- Centerline Angle: 30 deg
- Cutting Direction: Right Hand
- Finish: Steam Oxide
- Included Angle: 60 deg
- Material: HSS
- Number of Flutes: 3
- Overall Length: 2-1/4 in
- Series: 1003
- Shank Diameter: 3/8 in
