ISCA-5530800

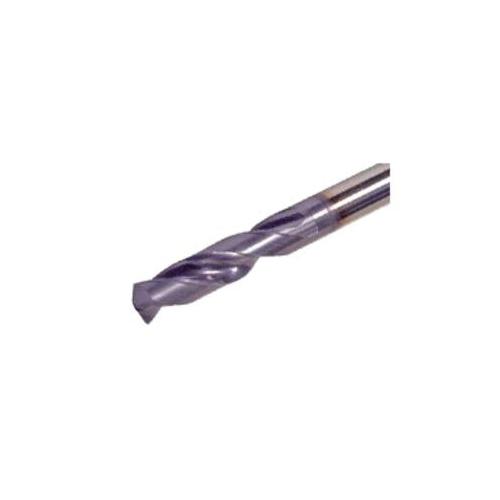

Iscar 5530800 SCD-ACP3 Stub Length Screw Machine Drill With Internal Through Coolant 5/8 in Drill - Fraction 0.625 in Drill - Decimal Inch Solid Carbide TiAlN Coated
Product information
Description
Iscar Screw Machine Drill Stub Length Series: SCD-ACP3 Imperial 5/8 in Drill - Fraction 0.625 in Drill - Decimal Inch 4.09 in Overall Length 3XD Cutting Depth 2 Flutes Spiral Flute 2.08 in Flute Length 5/8 in Dia x 1.91 in L Shank Straight Shank Standard Point Right Hand Cutting Direction Solid Carbide Cutting Edge Solid Carbide TiAlN Coated Applicable Materials: Cast Iron Hard Materials High Temperature Alloy Stainless Steel and Steel
Additional details
Product details
- IC908 Grade - A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Applicable Materials: Cast Iron Hard Materials High Temperature Alloy Stainless Steel and Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: Solid Carbide
- Finish: TiAlN Coated
- Flute Length: 2.08 in
- Material: Solid Carbide
- Overall Length: 4.09 in
- Point Type: Standard
- Shank Type: Straight
