ISCA-5530540

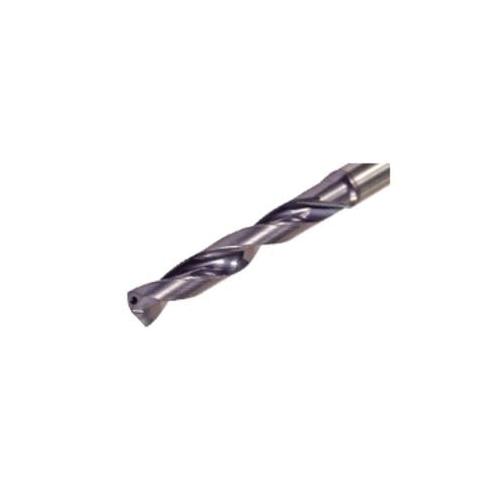

Iscar 5530540 SOLIDDRILL Jobber Length Drill Bit 3/4 in Drill - Fraction 0.75 in Drill - Decimal Inch 140 deg Point Solid Carbide PVD Coated
Product information
Description
Iscar Jobber Length Drill Bit Series: SOLIDDRILL Imperial 3/4 in Drill - Fraction 0.75 in Drill - Decimal Inch 5.83 in Overall Length 5XD Cutting Depth 2 Flutes Spiral Flute 3.74 in Flute Length 3/4 in Shank Straight Shank 140 deg Point Standard Point Right Hand Cutting Direction Solid Carbide Cutting Edge Yes Through Coolant Solid Carbide PVD Coated Applicable Materials: Cast Iron Hard Materials High Temperature Alloys Stainless Steel and Steel
Additional details
Product details
- IC908 grade - A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Applicable Materials: Cast Iron Hard Materials High Temperature Alloys Stainless Steel and Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: Solid Carbide
- Finish: PVD Coated
- Flute Length: 3.74 in
- Material: Solid Carbide
- Overall Length: 5.83 in
- Point Angle: 140 deg
- Point Type: Standard
- Shank Type: Straight
