ISCA-5530380

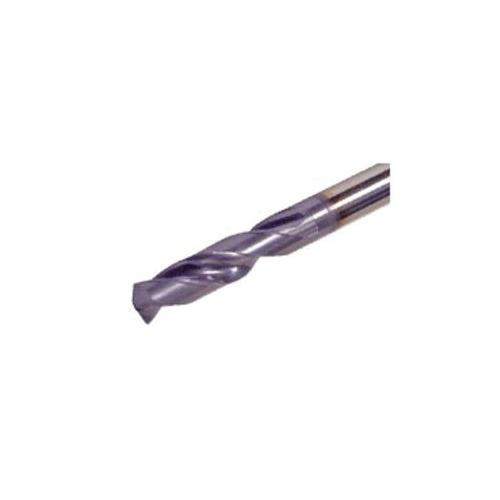

Iscar 5530380 SCD-AP3 Screw Machine Drill 9.4 mm Drill - Metric 0.3701 in Drill - Decimal Inch Solid Carbide TiAlN Coated
Product information
Description
Iscar Screw Machine Drill Series: SCD-AP3 Metric/Imperial 9.4 mm Drill - Metric 0.3701 in Drill - Decimal Inch 89 mm Overall Length 3XD Cutting Depth 2 Flutes Spiral Flute 47 mm Flute Length 10 mm Dia x 35 mm L Shank Straight Shank 140 deg Point Standard Point Right Hand Cutting Direction Solid Carbide Cutting Edge Solid Carbide TiAlN Coated Applicable Materials: Cast Iron Hard Materials High Temperature Alloy Stainless Steel and Steel
Additional details
Product details
- IC908 Grade - A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Applicable Materials: Cast Iron Hard Materials High Temperature Alloy Stainless Steel and Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: Solid Carbide
- Finish: TiAlN Coated
- Flute Length: 47 mm
- Material: Solid Carbide
- Overall Length: 89 mm
- Point Angle: 140 deg
- Point Type: Standard
- Shank Type: Straight
