ISCA-3202716

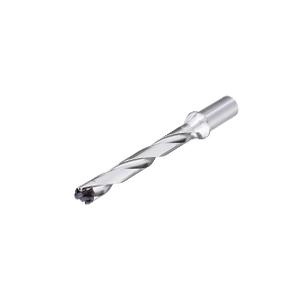

Iscar 3202716 SUMOCHAM Indexable Head Replaceable Tip Drill 0.394 to 0.409 in Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 5.68 in OAL 8XD Drill Depth by Dia Ratio 10 Insert Seat 5/8 in Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 0.394 to 0.409 in Drill Cylindrical Shank 5/8 in Shank Diameter 1.89 in Shank Length 3.22 in Flute Length 5.68 in Overall Length DCN Toolholder 3.22 in Maximum Drill Depth 8XD Drill Depth by Diameter Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 10 Insert Seat Yes Through Coolant
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 8XD
- Drill Size: 0.394 to 0.409 in
- Flute Length: 3.22 in
- Maximum Drill Depth: 3.22 in
- Overall Length: 5.68 in
- Series: SUMOCHAM
- Shank Diameter: 5/8 in
- Shank Length: 1.89 in
- Shank Type: Cylindrical
- Through Coolant (Yes/No): Yes
