ISCA-3202714

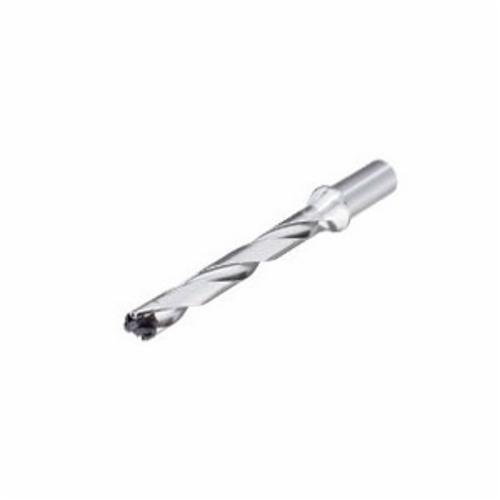

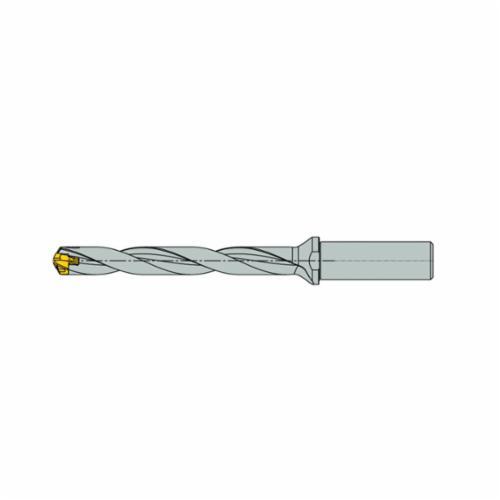

Iscar 3202714 SUMOCHAM Indexable Head Replaceable Tip Drill 0.315 to 0.331 in Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 4.9 in OAL 8XD Drill Depth by Dia Ratio 8 Insert Seat 1/2 in Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 0.315 to 0.331 in Drill Cylindrical Shank 1/2 in Shank Diameter 1.77 in Shank Length 2.58 in Flute Length 4.9 in Overall Length DCN Toolholder 2.58 in Maximum Drill Depth 8XD Drill Depth by Diameter Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 8 Insert Seat Yes Through Coolant
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 8XD
- Drill Size: 0.315 to 0.331 in
- Flute Length: 2.58 in
- Maximum Drill Depth: 2.58 in
- Overall Length: 4.9 in
- Series: SUMOCHAM
- Shank Diameter: 1/2 in
- Shank Length: 1.77 in
- Shank Type: Cylindrical
- Through Coolant (Yes/No): Yes
