ISCA-3202685
Iscar 3202685 SUMOCHAM Indexable Head Replaceable Tip Drill 14 to 14.4 mm Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 138.2 mm OAL 5XD Drill Depth by Dia Ratio 14 Insert Seat 16 mm Dia Shank DCN Toolholder
Product information
Description

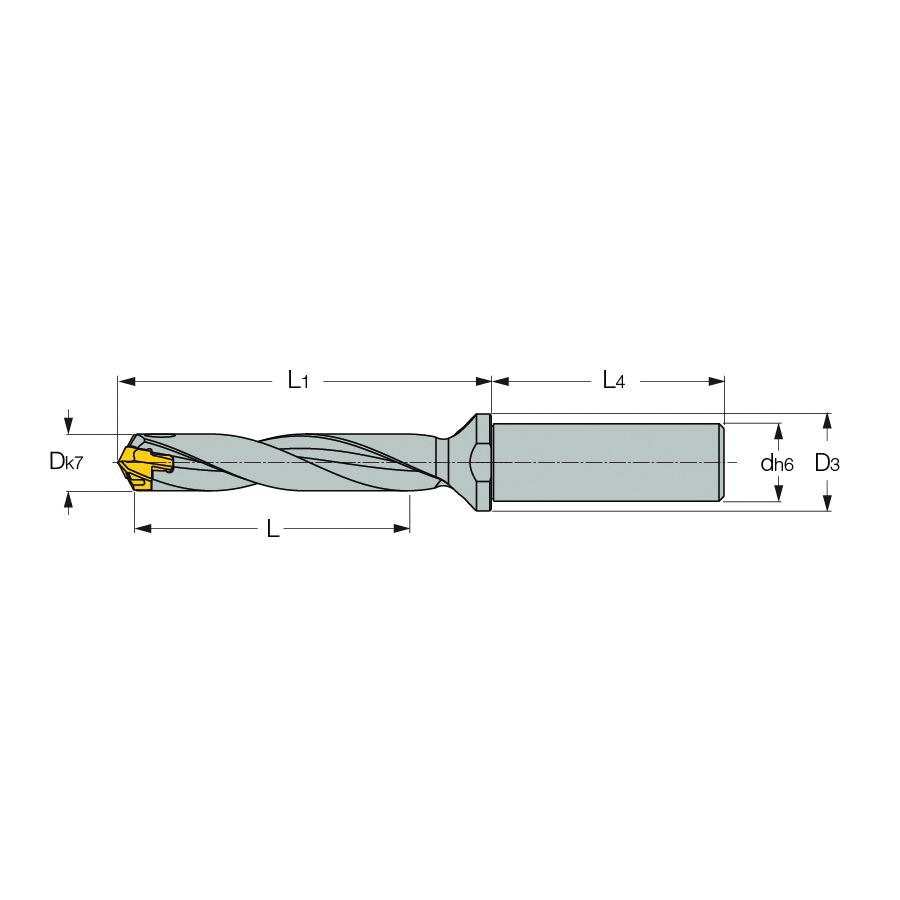

Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 14 to 14.4 mm Drill Cylindrical Shank 16 mm Shank Dia 48 mm Shank Length 72.6 mm Flute Length 138.2 mm Overall Length DCN Toolholder Type 72.6 mm Maximum Drill Depth 5XD Drill Depth by Dia Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 14 Insert Seat Yes Through Coolant (Yes/No)
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 5XD
- Drill Size: 14 to 14.4 mm
- Flute Length: 72.6 mm
- Maximum Drill Depth: 72.6 mm
- Overall Length: 138.2 mm
- Series: SUMOCHAM
- Shank Diameter: 16 mm
- Shank Length: 48 mm
- Shank Type: Cylindrical
- Through Coolant (Yes/No): Yes
