ISCA-3202644

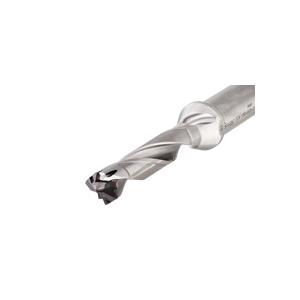

Iscar 3202644 SUMOCHAM Indexable Head Replaceable Tip Drill 0.709 to 0.744 in Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 6.87 in OAL 5XD Drill Depth by Dia Ratio 18 Insert Seat 1 in Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 0.709 to 0.744 in Drill Cylindrical Shank 1 in Shank Dia 2.2 in Shank Length 3.67 in Flute Length 6.87 in Overall Length DCN Toolholder Type 3.67 in Maximum Drill Depth 5XD Drill Depth by Dia Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 18 Insert Seat Yes Through Coolant (Yes/No)
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 5XD
- Drill Size: 0.709 to 0.744 in
- Flute Length: 3.67 in
- Maximum Drill Depth: 3.67 in
- Overall Length: 6.87 in
- Series: SUMOCHAM
- Shank Diameter: 1 in
- Shank Length: 2.2 in
- Shank Type: Cylindrical
- Through Coolant (Yes/No): Yes
