ISCA-3202641

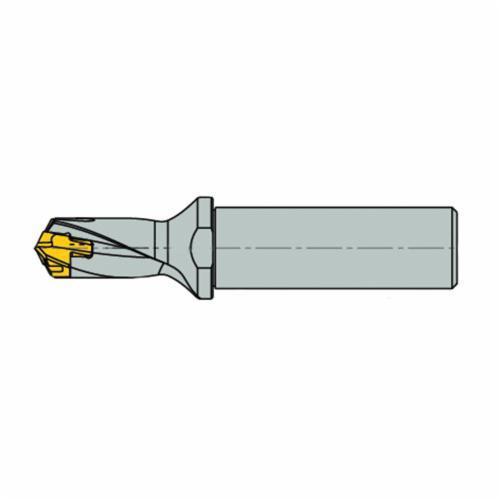

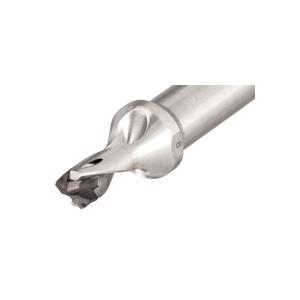

Iscar 3202641 SUMOCHAM Indexable Head Replaceable Tip Drill 0.669 to 0.705 in Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 4.03 in OAL 1.5XD Drill Depth by Dia Ratio 17 Insert Seat 3/4 in Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: HARVI" 0.669 to 0.705 in Drill Cylindrical Shank 3/4 in Shank Dia 1.97 in Shank Length 1.12 in Flute Length 4.03 in Overall Length DCN Toolholder Type 1.12 in Maximum Drill Depth 1.5XD Drill Depth by Dia Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 17 Insert Seat Yes Through Coolant (Yes/No)
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 1.5XD
- Drill Size: 0.669 to 0.705 in
- Flute Length: 1.12 in
- Maximum Drill Depth: 1.12 in
- Overall Length: 4.03 in
- Series: SUMOCHAM
- Shank Diameter: 3/4 in
- Shank Length: 1.97 in
- Shank Type: Cylindrical
- Through Coolant (Yes/No): Yes
