ISCA-3202617

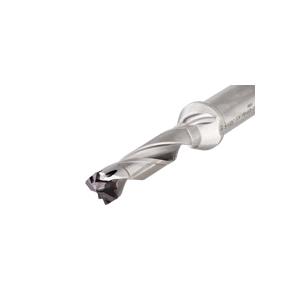

Iscar 3202617 SUMOCHAM Indexable Head Replaceable Tip Drill 0.315 to 0.331 in Drill ICM ICP ICK ICP-2M ICK-2M FCP HCP-IQ Insert 3.95 in OAL 5XD Drill Depth by Dia Ratio 8 Insert Seat 1/2 in Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 0.315 to 0.331 in Drill Cylindrical Shank 1/2 in Shank Dia 1.77 in Shank Length 1.63 in Flute Length 3.95 in Overall Length DCN Toolholder 1.63 in Maximum Drill Depth 5XD Drill Depth by Dia Ratio ICM ICP ICK ICP-2M ICK-2M FCP HCP-IQ Insert 8 Insert Seat Through Coolant: Yes
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 5XD
- Drill Size: 0.315 to 0.331 in
- Flute Length: 1.63 in
- Maximum Drill Depth: 1.63 in
- Overall Length: 3.95 in
- Series: SUMOCHAM
- Shank Diameter: 1/2 in
- Shank Length: 1.77 in
- Shank Type: Cylindrical
- Through Coolant (Yes/No): Yes
