ISCA-3202604

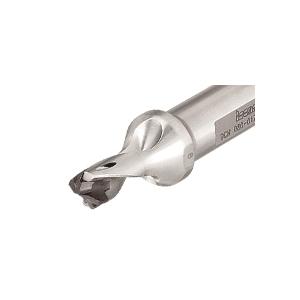

Iscar 3202604 SUMOCHAM Indexable Head Replaceable Tip Drill 0.984 to 1.02 in Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 5.39 in OAL 1.5XD Drill Depth by Dia Ratio 25 Insert Seat 1-1/4 in Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 0.984 to 1.02 in Drill Weldon Flat Shank 1-1/4 in Shank Diameter 2.36 in Shank Length 1.68 in Flute Length 5.39 in Overall Length DCN Toolholder 1.68 in Maximum Drill Depth 1.5XD Drill Depth by Diameter Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 25 Insert Seat Yes Through Coolant
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 1.5XD
- Drill Size: 0.984 to 1.02 in
- Flute Length: 1.68 in
- Maximum Drill Depth: 1.68 in
- Overall Length: 5.39 in
- Series: SUMOCHAM
- Shank Diameter: 1-1/4 in
- Shank Length: 2.36 in
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
