ISCA-3202590

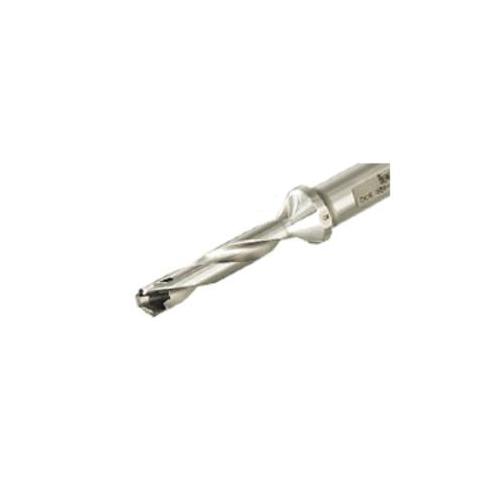

Iscar 3202590 SUMOCHAM Indexable Head Replaceable Tip Drill 0.984 to 1.02 in Drill ICP Insert 6.87 in OAL 3XD Drill Depth by Dia Ratio 25 Insert Seat 1-1/4 in Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 0.984 to 1.02 in Drill Weldon Flat Shank 1-1/4 in Shank Diameter 2.36 in Shank Length 3.13 in Flute Length 6.87 in Overall Length DCN Toolholder 3.13 in Maximum Drill Depth 3XD Drill Depth by Diameter Ratio ICP Insert 25 Insert Seat Yes Through Coolant
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 3XD
- Drill Size: 0.984 to 1.02 in
- Flute Length: 3.13 in
- Maximum Drill Depth: 3.13 in
- Overall Length: 6.87 in
- Series: SUMOCHAM
- Shank Diameter: 1-1/4 in
- Shank Length: 2.36 in
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
