ISCA-3202497

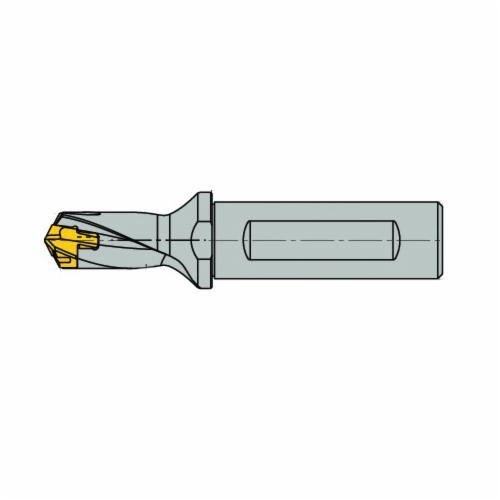

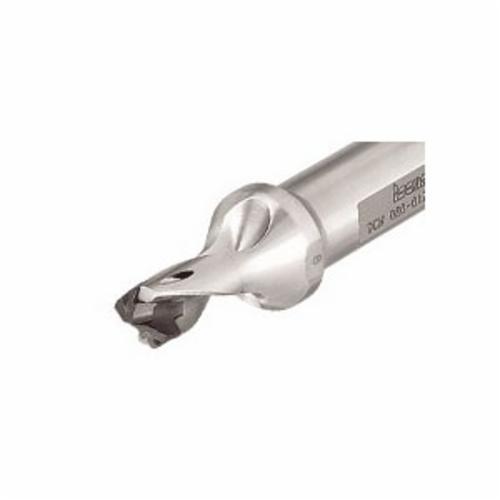

Iscar 3202497 SUMOCHAM Indexable Head Replaceable Tip Drill 15 to 15.9 mm Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 96.2 mm OAL 1.5XD Drill Depth by Dia Ratio 15 Insert Seat 20 mm Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 15 to 15.9 mm Drill Weldon Flat Shank 20 mm Shank Diameter 50 mm Shank Length 25.7 mm Flute Length 96.2 mm Overall Length DCN Toolholder 25.7 mm Maximum Drill Depth 1.5XD Drill Depth by Diameter Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 15 Insert Seat Yes Through Coolant
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 1.5XD
- Drill Size: 15 to 15.9 mm
- Flute Length: 25.7 mm
- Maximum Drill Depth: 25.7 mm
- Overall Length: 96.2 mm
- Series: SUMOCHAM
- Shank Diameter: 20 mm
- Shank Length: 50 mm
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
