ISCA-3202487
Iscar 3202487 SUMOCHAM Indexable Head Replaceable Tip Drill 0.748 to 0.783 in Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 9.37 in OAL 8XD Drill Depth by Dia Ratio 19 Insert Seat 1 in Dia Shank DCN Toolholder
Product information
Description

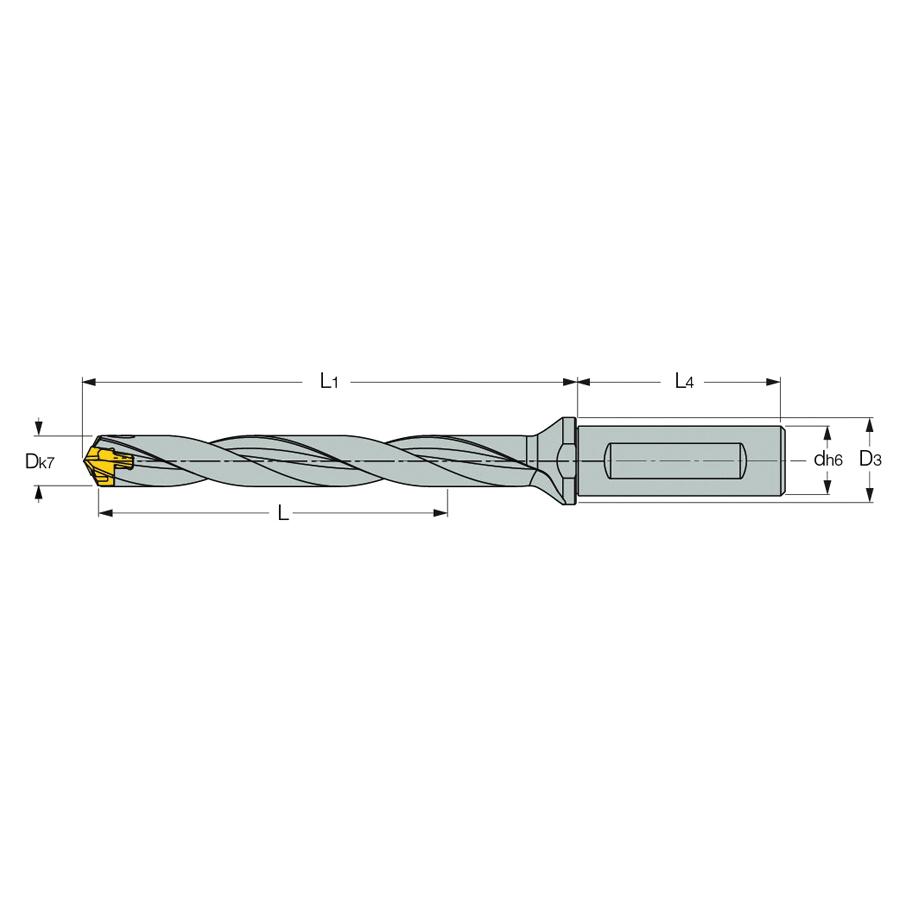

Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 0.748 to 0.783 in Drill Weldon Flat Shank 1 in Shank Diameter 2.2 in Shank Length 6.12 in Flute Length 9.37 in Overall Length DCN Toolholder 6.12 in Maximum Drill Depth 8XD Drill Depth by Diameter Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 19 Insert Seat Yes Through Coolant
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 8XD
- Drill Size: 0.748 to 0.783 in
- Flute Length: 6.12 in
- Maximum Drill Depth: 6.12 in
- Overall Length: 9.37 in
- Series: SUMOCHAM
- Shank Diameter: 1 in
- Shank Length: 2.2 in
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
