ISCA-3202483

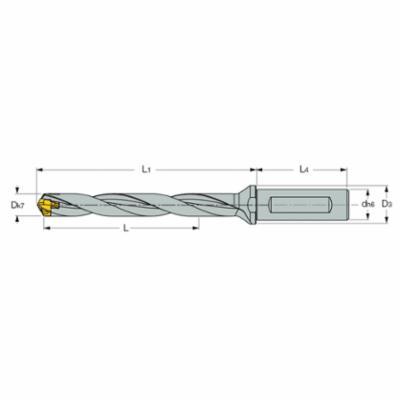

Iscar 3202483 SUMOCHAM Indexable Head Replaceable Tip Drill 0.591 to 0.626 in Drill ICP Insert 7.63 in OAL 8XD Drill Depth by Dia Ratio 15 Insert Seat 3/4 in Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 0.591 to 0.626 in Drill Weldon Flat Shank 3/4 in Shank Diameter 1.97 in Shank Length 4.83 in Flute Length 7.63 in Overall Length DCN Toolholder 4.83 in Maximum Drill Depth 8XD Drill Depth by Diameter Ratio ICP Insert 15 Insert Seat Yes Through Coolant
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 8XD
- Drill Size: 0.591 to 0.626 in
- Flute Length: 4.83 in
- Maximum Drill Depth: 4.83 in
- Overall Length: 7.63 in
- Series: SUMOCHAM
- Shank Diameter: 3/4 in
- Shank Length: 1.97 in
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
