ISCA-3202469

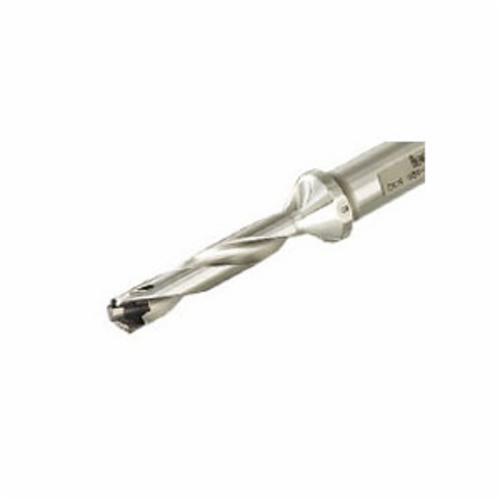

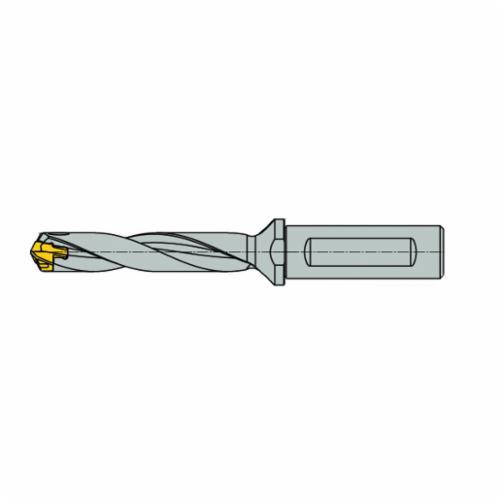

Iscar 3202469 SUMOCHAM Indexable Head Replaceable Tip Drill 13 to 13.4 mm Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 169.6 mm OAL 8XD Drill Depth by Dia Ratio 13 Insert Seat 16 mm Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 13 to 13.4 mm Drill Weldon Flat Shank 16 mm Shank Diameter 48 mm Shank Length 106.4 mm Flute Length 169.6 mm Overall Length DCN Toolholder 106.4 mm Maximum Drill Depth 8XD Drill Depth by Diameter Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 13 Insert Seat Yes Through Coolant
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 8XD
- Drill Size: 13 to 13.4 mm
- Flute Length: 106.4 mm
- Maximum Drill Depth: 106.4 mm
- Overall Length: 169.6 mm
- Series: SUMOCHAM
- Shank Diameter: 16 mm
- Shank Length: 48 mm
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
