ISCA-3202060

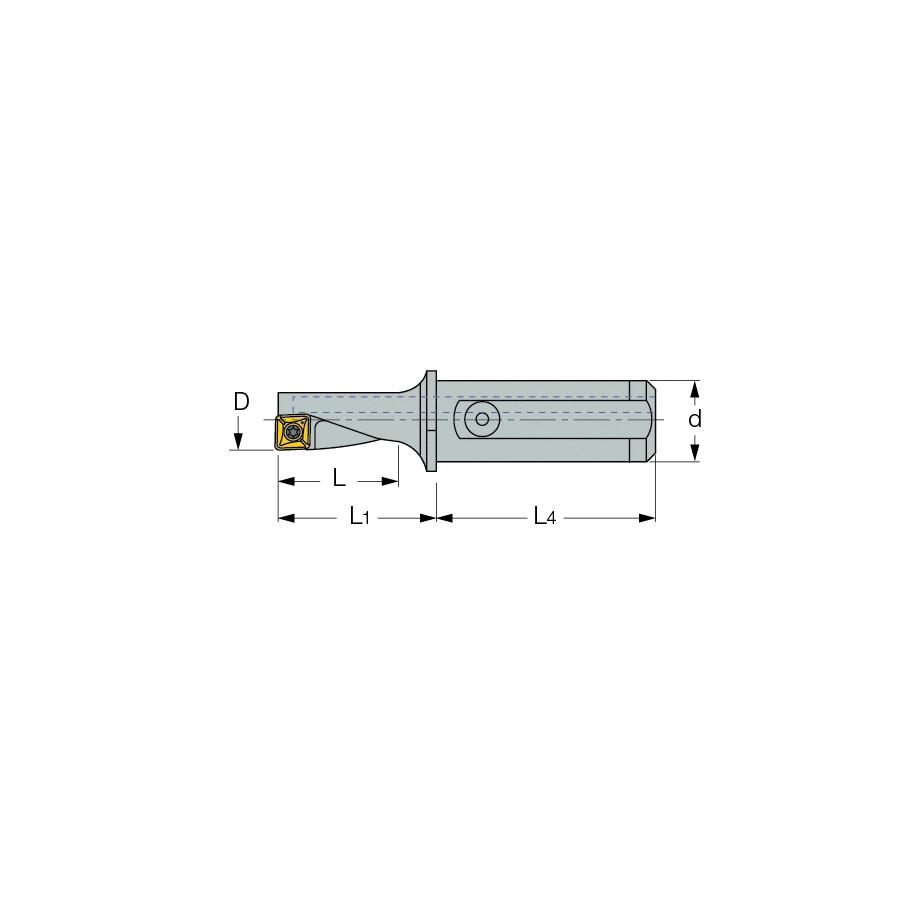

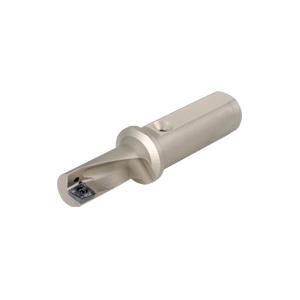

Iscar 3202060 Multi-Function Indexable Insert Drill 20 mm Drill 25 mm Dia Shank 2.25XD Drill Depth by Dia Ratio XCMT Insert 111 mm OAL 45 mm D Max Drill

Product information

Description

Iscar Indexable Insert Drill Multi-Function 20 mm Drill 25 mm Shank Dia 56 mm Shank Length Straight Shank XCMT Insert 45 mm Maximum Drill Depth 111 mm Overall Length 20 mm Dia 2.25XD Drill Depth by Dia Ratio 1 Drill Inserts Insert Compatibility: XCMT-MF 45 mm Flute Length Yes Through Coolant (Yes/No)

Additional details

Product details

  • 55 mm body length ISO Code: DR-MF-20R-2.25D-25A-10

Attributes

  • Drill Depth by Diameter Ratio: 2.25XD
  • Drill Size: 20 mm
  • Flute Length: 45 mm
  • Maximum Drill Depth: 45 mm
  • Overall Length: 111 mm
  • Shank Diameter: 25 mm
  • Shank Length: 56 mm
  • Shank Type: Straight
  • Through Coolant (Yes/No): Yes
