ISCA-3201851

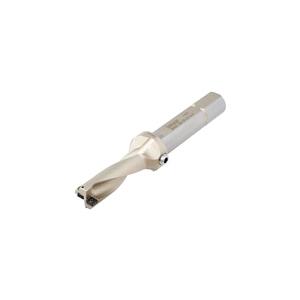

Iscar 3201851 DR-TWIST Indexable Insert Drill 1.65 in Drill 1.969 in Modular Connection 1-1/2 in Dia Shank 3XD Drill Depth by Dia Ratio SOMT Insert 8.96 in OAL 4-1/2 in D Max Drill
Product information
Description
Iscar Indexable Insert Drill Series: 565 1.65 in Drill 1-1/2 in Shank Dia 3 in Shank Length Straight Shank 1.969 in Modular Connection Size SOMT Insert 4-1/2 in Maximum Drill Depth 8.96 in Overall Length 1-1/2 in Dia 3XD Drill Depth by Dia Ratio 2 Drill Inserts Insert Compatibility: SOMT-DT SOMT-GF SOMT-HD 4-1/2 in Flute Length Yes Through Coolant (Yes/No)
Additional details
Product details
- 1.5 in tool diameter ISO Code: DR1500-4500-150-12-3D-N
Attributes
- Drill Depth by Diameter Ratio: 3XD
- Drill Size: 1.65 in
- Flute Length: 4-1/2 in
- Maximum Drill Depth: 4-1/2 in
- Overall Length: 8.96 in
- Series: DR-TWIST
- Shank Diameter: 1-1/2 in
- Shank Length: 3 in
- Shank Type: Straight
- Through Coolant (Yes/No): Yes
