ISCA-3201810

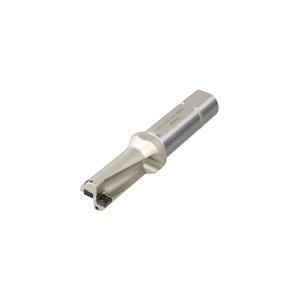

Iscar 3201810 DR-TWIST Indexable Insert Drill 1.77 in Drill 1.97 in Modular Connection 1-1/2 in Dia Shank 2XD Drill Depth by Dia Ratio SOMT Insert 7.95 in OAL 3-1/2 in D Max Drill
Product information
Description
Iscar Indexable Insert Drill Series: DR-TWIST 1.77 in Drill 1-1/2 in Shank Dia 3 in Shank Length Straight Shank 1.97 in Modular Connection Size SOMT Insert 3-1/2 in Maximum Drill Depth 7.95 in Overall Length 1-3/4 in Dia 2XD Drill Depth by Dia Ratio 2 Drill Inserts Insert Compatibility: SOMT-DT SOMT-GF SOMT-HD 3-1/2 in Flute Length Yes Through Coolant (Yes/No)
Additional details
Product details
- 1.75 in tool diameter 3/4 in NPT thread ISO Code: DR1750-3500-150-12-2D-N
Attributes
- Drill Depth by Diameter Ratio: 2XD
- Drill Size: 1.77 in
- Flute Length: 3-1/2 in
- Maximum Drill Depth: 3-1/2 in
- Overall Length: 7.95 in
- Series: DR-TWIST
- Shank Diameter: 1-1/2 in
- Shank Length: 3 in
- Shank Type: Straight
- Through Coolant (Yes/No): Yes
