ISCA-3201705

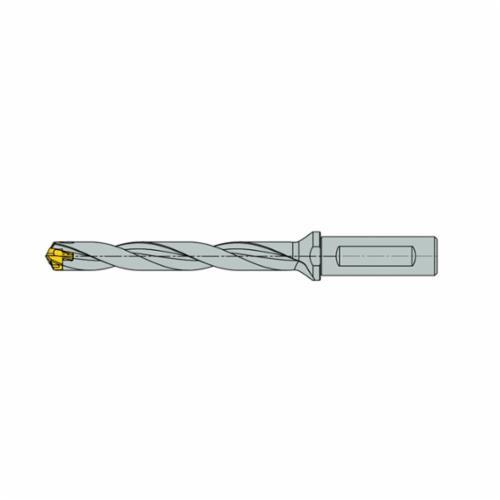

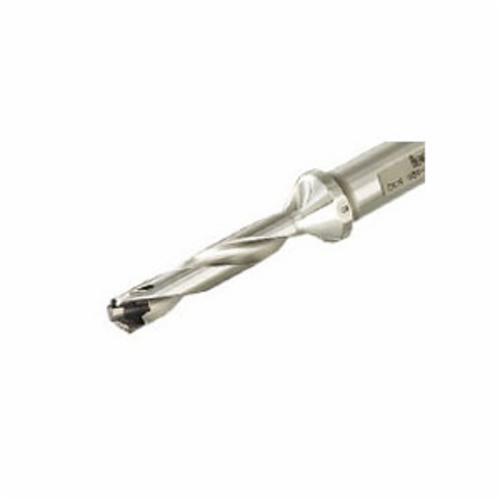

Iscar 3201705 SUMOCHAM Indexable Head Replaceable Tip Drill 24 to 24.9 mm Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 170 mm OAL 3XD Drill Depth by Dia Ratio 24 Insert Seat 32 mm Dia Shank DCN Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: SUMOCHAM 24 to 24.9 mm Drill Weldon Flat Shank 32 mm Shank Diameter 60 mm Shank Length 76.4 mm Flute Length 170 mm Overall Length DCN Toolholder 76.4 mm Maximum Drill Depth 3XD Drill Depth by Diameter Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 24 Insert Seat Yes Through Coolant
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 3XD
- Drill Size: 24 to 24.9 mm
- Flute Length: 76.4 mm
- Maximum Drill Depth: 76.4 mm
- Overall Length: 170 mm
- Series: SUMOCHAM
- Shank Diameter: 32 mm
- Shank Length: 60 mm
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
