ISCA-3201503

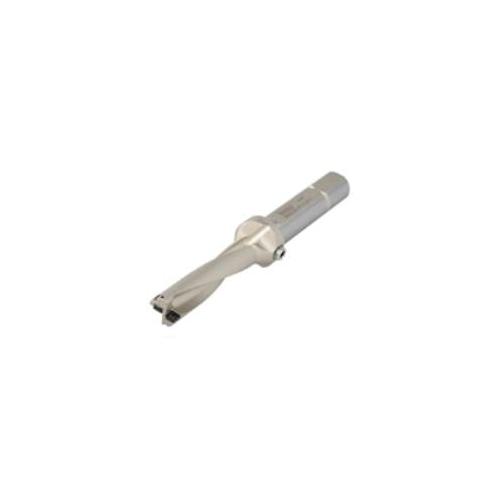

Iscar 3201503 DR-TWIST Indexable Insert Drill 1.65 in Drill 1.99 in Modular Connection 1-1/2 in Dia Shank 4XD Drill Depth by Dia Ratio SOMT Insert 10.46 in OAL 6 in D Max Drill
Product information
Description
Iscar Indexable Insert Drill Series: DR-TWIST 1.65 in Drill 1-1/2 in Shank Dia 3 in Shank Length Straight Shank 1.99 in Modular Connection Size SOMT Insert 6 in Maximum Drill Depth 10.46 in Overall Length 1-1/2 in Dia 4XD Drill Depth by Dia Ratio 2 Drill Inserts Insert Compatibility: SOMT-DT SOMT-GF 6 in Flute Length Yes Through Coolant (Yes/No)
Additional details
Product details
- Exchangeable DCN drill heads for carbon and alloy steel The drill head is designed with a honed cutting edge A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Drill Depth by Diameter Ratio: 4XD
- Drill Size: 1.65 in
- Flute Length: 6 in
- Maximum Drill Depth: 6 in
- Overall Length: 10.46 in
- Series: DR-TWIST
- Shank Diameter: 1-1/2 in
- Shank Length: 3 in
- Shank Type: Straight
- Through Coolant (Yes/No): Yes
