ISCA-3201501

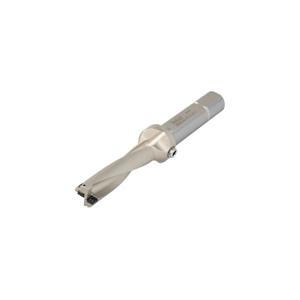

Iscar 3201501 DR-TWIST Indexable Insert Drill 1.59 in Drill 1.969 in Modular Connection 1-1/2 in Dia Shank 4XD Drill Depth by Dia Ratio SOMT Insert 9.96 in OAL 5-1/2 in D Max Drill
Product information
Description
Iscar Indexable Insert Drill Series: DR-TWIST 1.59 in Drill 1-1/2 in Shank Dia 3 in Shank Length Straight Shank 1.969 in Modular Connection Size SOMT Insert 5-1/2 in Maximum Drill Depth 9.96 in Overall Length 1-3/8 in Dia 4XD Drill Depth by Dia Ratio 2 Drill Inserts Insert Compatibility: SOMT-DT SOMT-GF SOMT-HD 5-1/2 in Flute Length Yes Through Coolant (Yes/No)
Additional details
Product details
- 1.375 in tool diameter 3/4-14 NPT thread ISO Code: DR1375-5500-150-12-4D-N
Attributes
- Drill Depth by Diameter Ratio: 4XD
- Drill Size: 1.59 in
- Flute Length: 5-1/2 in
- Maximum Drill Depth: 5-1/2 in
- Overall Length: 9.96 in
- Series: DR-TWIST
- Shank Diameter: 1-1/2 in
- Shank Length: 3 in
- Shank Type: Straight
- Through Coolant (Yes/No): Yes
