ISCA-3201404

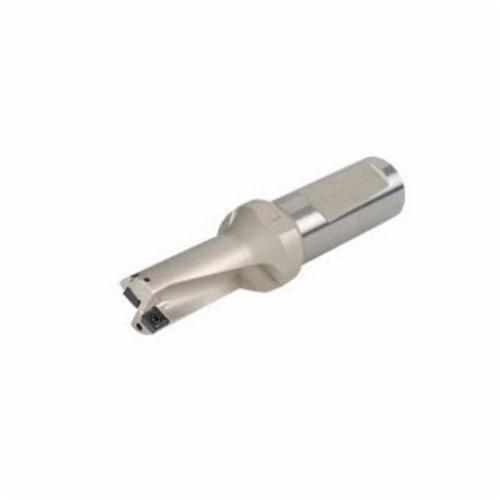

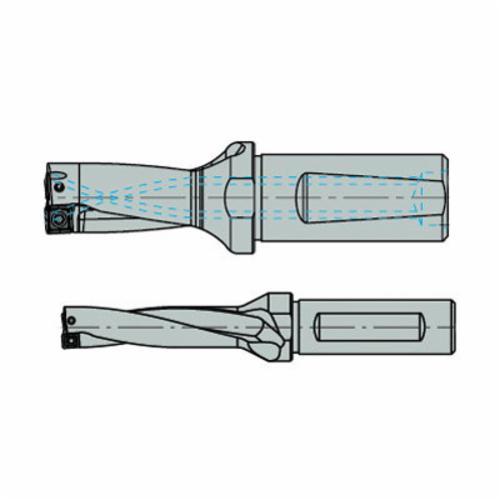

Iscar 3201404 DR-TWIST Indexable Insert Drill 0.988 in Drill 1.26 in Modular Connection 1 in Dia Shank 4XD Drill Depth by Dia Ratio SOGX/SOMX Insert 7.36 in OAL 3-1/2 in D Max Drill
Product information
Description
Iscar Indexable Insert Drill Series: DR-TWIST 0.988 in Drill 1 in Shank Dia 3 in Shank Length Whistle Notch Shank 1.26 in Modular Connection Size SOGX/SOMX Insert 3-1/2 in Maximum Drill Depth 7.36 in Overall Length 7/8 in Dia 4XD Drill Depth by Dia Ratio Insert Compatibility: SOGX-AL SOMX-DT SOMX-GF SOMX-HD 3-1/2 in Flute Length Yes Through Coolant (Yes/No)
Additional details
Attributes
- Drill Depth by Diameter Ratio: 4XD
- Drill Size: 0.988 in
- Flute Length: 3-1/2 in
- Maximum Drill Depth: 3-1/2 in
- Overall Length: 7.36 in
- Series: DR-TWIST
- Shank Diameter: 1 in
- Shank Length: 3 in
- Shank Type: Whistle Notch
- Through Coolant (Yes/No): Yes
