ISCA-3201396

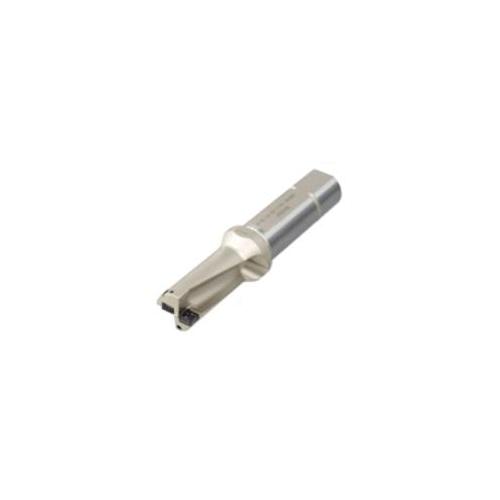

Iscar 3201396 DR-TWIST Indexable Insert Drill 1.02 in Drill 1.26 in Modular Connection 1 in Dia Shank 2XD Drill Depth by Dia Ratio SOGX/SOMX Insert 5.74 in OAL 1.88 in D Max Drill
Product information
Description
Iscar Indexable Insert Drill Series: DR-TWIST 1.02 in Drill 1 in Shank Diameter 3 in Shank Length Straight Shank 1.26 in Modular Connection SOGX/SOMX Insert 1.88 in Maximum Drill Depth 5.74 in Overall Length 0.937 in Diameter 2XD Drill Depth by Diameter Ratio Insert Compatibility: SOGX-AL SOMX-DT SOMX-GF SOMX-HD 1.88 in Flute Length Yes Through Coolant
Additional details
Attributes
- Drill Depth by Diameter Ratio: 2XD
- Drill Size: 1.02 in
- Flute Length: 1.88 in
- Maximum Drill Depth: 1.88 in
- Overall Length: 5.74 in
- Series: DR-TWIST
- Shank Diameter: 1 in
- Shank Length: 3 in
- Shank Type: Straight
- Through Coolant (Yes/No): Yes
