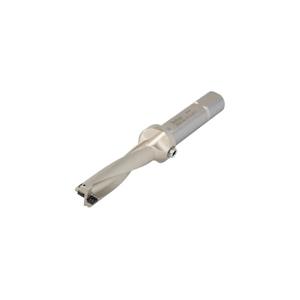

Iscar 3201334 DR-TWIST Indexable Insert Drill 0.681 in Drill 1.102 in Modular Connection 3/4 in Dia Shank 4XD Drill Depth by Dia Ratio SOGX/SOMX Insert 6.2 in OAL 2.38 in D Max Drill
Product information
Description
Iscar Indexable Insert Drill Series: DR-TWIST 0.681 in Drill 3/4 in Shank Dia 3 in Shank Length Straight Shank 1.102 in Modular Connection Size SOGX/SOMX Insert 2.38 in Maximum Drill Depth 6.2 in Overall Length 0.594 in Dia 4XD Drill Depth by Dia Ratio 2 Drill Inserts Insert Compatibility: SOGX/T-AL SOMX-DT SOMX-GF SOMX-HD 2.38 in Flute Length Yes Through Coolant (Yes/No)
Additional details
Product details
- 0.594 in tool diameter 1/4-18 NPT thread ISO Code: DR0594-2375-075-05-4D-N
Attributes
- Drill Depth by Diameter Ratio: 4XD
- Drill Size: 0.681 in
- Flute Length: 2.38 in
- Maximum Drill Depth: 2.38 in
- Overall Length: 6.2 in
- Series: DR-TWIST
- Shank Diameter: 3/4 in
- Shank Length: 3 in
- Shank Type: Straight
- Through Coolant (Yes/No): Yes
