ISCA-3201293
Iscar 3201293 CHAMRING Indexable 5.51 in OAL XCGT 09.. Insert
Product information
Description
Iscar Drilling Chamfer Ring Indexable Series: CHAMRING Drilling Capacity: 0.787 to 0.823 in 5.51 in Overall Length XCGT 09.. Insert 1.35 in Maximum Chamfer Dia
Additional details
Product details

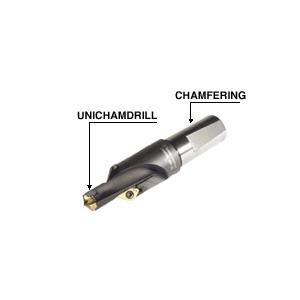

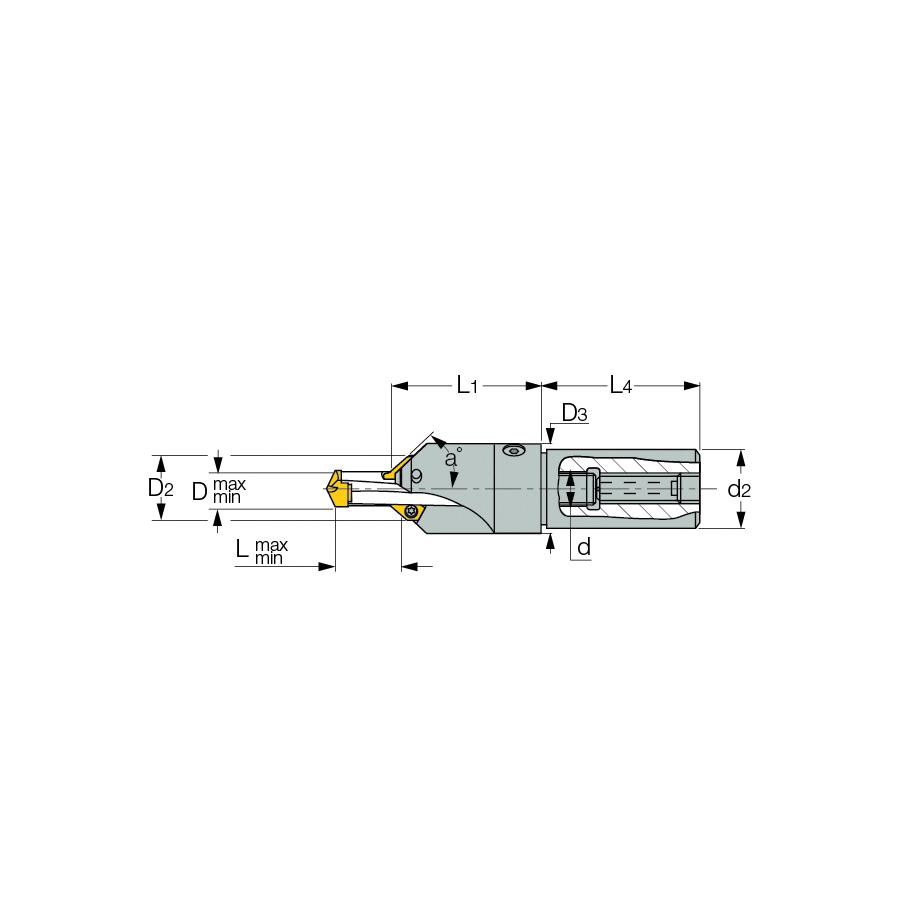

- Drill holders used with UNISUMOCHAM or UNICHAMDRILL drills for drilling and chamfering in one operation 2.95 in drill protruding length 2.56 in shank length 1.496 in holder diameter 1-1/4 in holding diameter 0.787 shank diameter ISO Code: CHAMRING 0787-W1.25-09
Attributes
- Overall Length: 5.51 in
- Series: SUMOCHAM
- Manufacturer's Grade: IC908
- Material: Carbide
