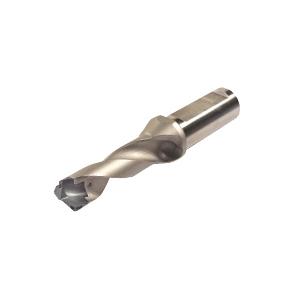

ISCA-3201041 product image 0
ISCA-3201041

Iscar 3201041 CHAMDRILL JET Indexable Head Replaceable Tip Drill 0.551 to 0.587 in Drill FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 5.38 in OAL 5XD Drill Depth by Dia Ratio 14 Insert Seat 5/8 in Dia Shank DSM Toolholder

Product information

Description

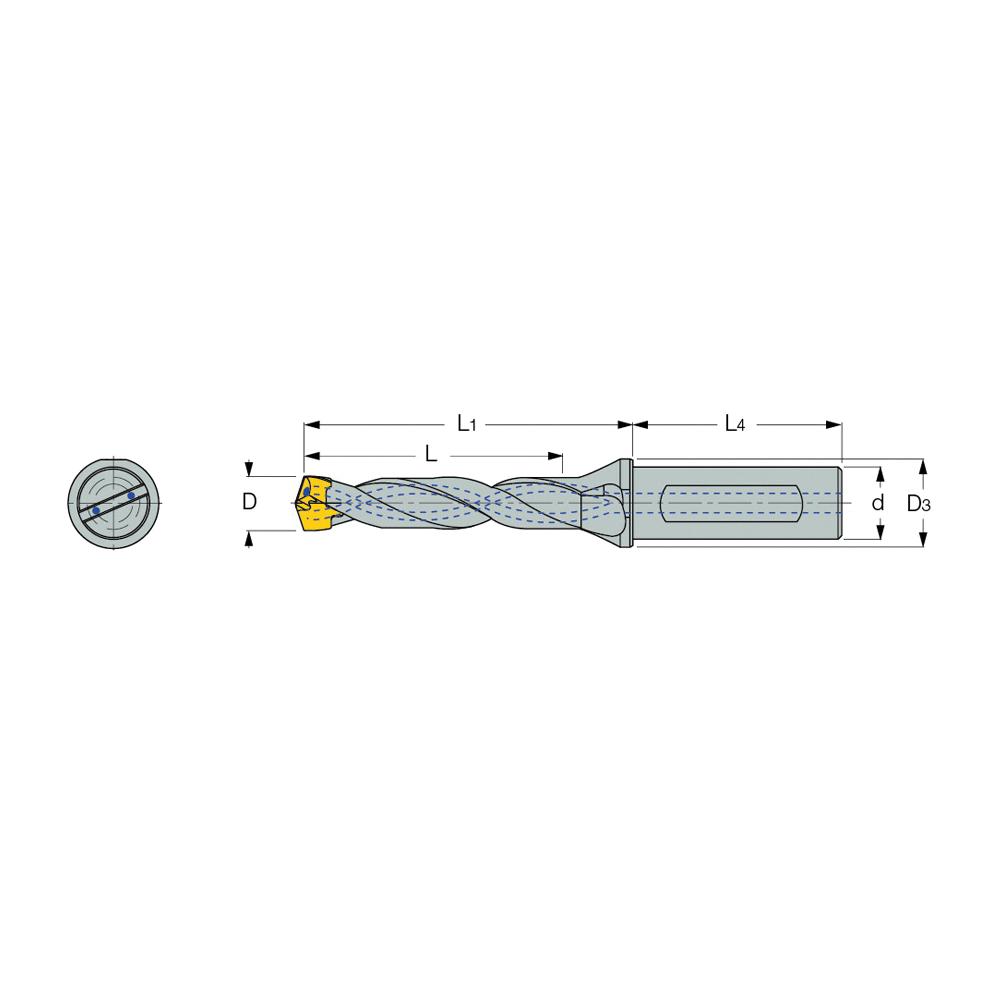

Iscar Replaceable Tip Drill Indexable Head Series: CHAMDRILL JET 0.551 to 0.587 in Drill Weldon Flat Shank 5/8 in Shank Diameter 1.98 in Shank Length 2-3/4 in Flute Length 5.38 in Overall Length DSM Toolholder 2-3/4 in Maximum Drill Depth 5XD Drill Depth by Diameter Ratio FCP ICK ICK-2M ICM ICN ICP ICP-2M Insert 14 Insert Seat Yes Through Coolant

LoginRequest an account

Additional details

Product details

  • Feature 4 standard drilling head types for drilling on 4 different material groups

Attributes

  • Drill Depth by Diameter Ratio: 5XD
  • Drill Size: 0.551 to 0.587 in
  • Flute Length: 2-3/4 in
  • Maximum Drill Depth: 2-3/4 in
  • Overall Length: 5.38 in
  • Series: CHAMDRILL JET
  • Shank Diameter: 5/8 in
  • Shank Length: 1.98 in
  • Shank Type: Weldon Flat
  • Through Coolant (Yes/No): Yes
