ISCA-3200975

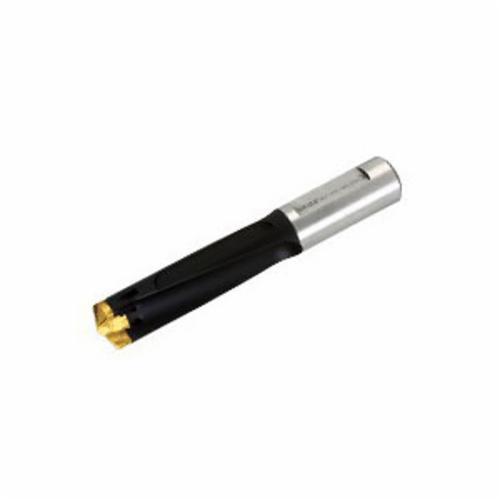

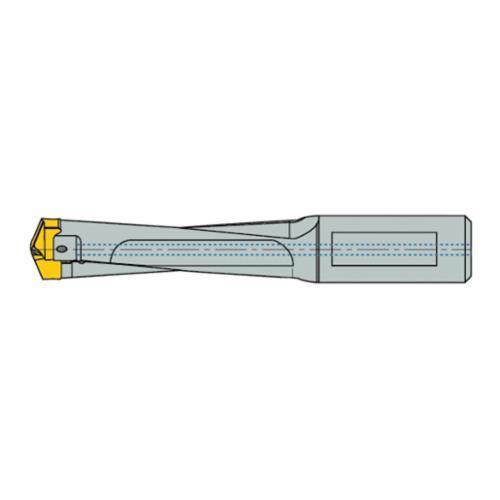

Iscar 3200975 UNICHAMDRILL Indexable Head Replaceable Tip Drill 0.433 to 0.449 in Drill IDI-SG IDI-SK Insert 3.53 in OAL 3.5XD Drill Depth by Dia Ratio 11 Insert Seat 0.433 in Dia Shank DCM Toolholder

Product information

Description

Iscar Replaceable Tip Drill Indexable Head Series: UNICHAMDRILL 0.433 to 0.449 in Drill Weldon Flat Shank 0.433 in Shank Diameter 1.69 in Shank Length 1.417 in Flute Length 3.53 in Overall Length DCM Toolholder 1.417 in Maximum Drill Depth 3.5XD Drill Depth by Diameter Ratio IDI-SG IDI-SK Insert 11 Insert Seat Yes Through Coolant

LoginRequest an account

Additional details

Attributes

  • Drill Depth by Diameter Ratio: 3.5XD
  • Drill Size: 0.433 to 0.449 in
  • Flute Length: 1.417 in
  • Maximum Drill Depth: 1.417 in
  • Overall Length: 3.53 in
  • Series: UNICHAMDRILL
  • Shank Diameter: 0.433 in
  • Shank Length: 1.69 in
  • Shank Type: Weldon Flat
  • Through Coolant (Yes/No): Yes
