ISCA-3200966

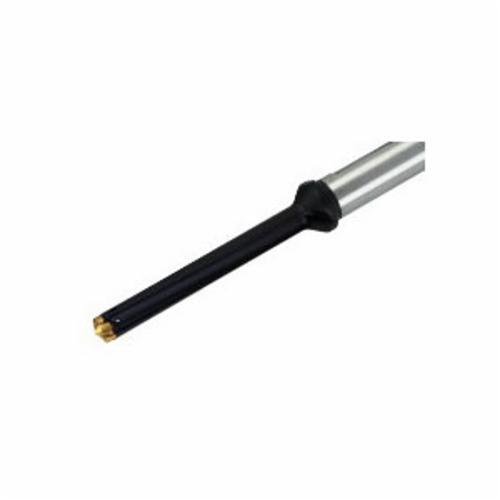

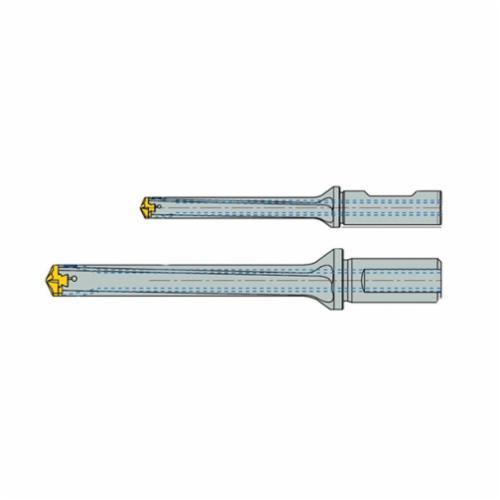

Iscar 3200966 CHAMDRILL Indexable Head Replaceable Tip Drill 0.748 to 0.783 in Drill IDI-SG IDI-SK Insert 9.19 in OAL 8XD Drill Depth by Dia Ratio 19 Insert Seat 1 in Dia Shank DCM Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: CHAMDRILL 0.748 to 0.783 in Drill Weldon Flat Shank 1 in Shank Diameter 2.2 in Shank Length 5.98 in Flute Length 9.19 in Overall Length DCM Toolholder 5.98 in Maximum Drill Depth 8XD Drill Depth by Diameter Ratio IDI-SG IDI-SK Insert 19 Insert Seat Yes Through Coolant
Additional details
Attributes
- Drill Depth by Diameter Ratio: 8XD
- Drill Size: 0.748 to 0.783 in
- Flute Length: 5.98 in
- Maximum Drill Depth: 5.98 in
- Overall Length: 9.19 in
- Series: CHAMDRILL
- Shank Diameter: 1 in
- Shank Length: 2.2 in
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
