ISCA-3200669

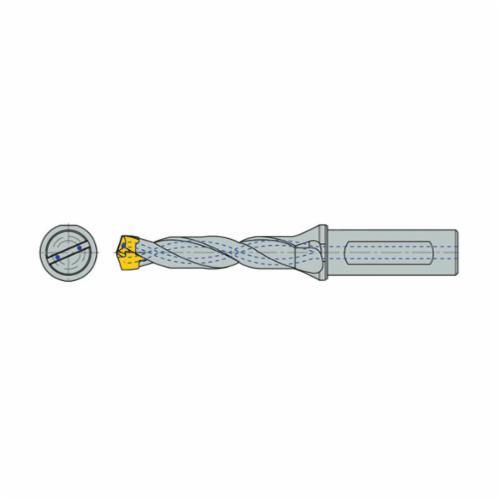

Iscar 3200669 CHAMDRILL JET Indexable Head Replaceable Tip Drill 12 to 12.9 mm Drill IDK IDM IDN IDP Insert 126.9 mm OAL 5XD Drill Depth by Dia Ratio 12 Insert Seat 16 mm Dia Shank DSM Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: CHAMDRILL JET 12 to 12.9 mm Drill Weldon Flat Shank 16 mm Shank Diameter 48 mm Shank Length 60 mm Flute Length 126.9 mm Overall Length DSM Toolholder 60 mm Maximum Drill Depth 5XD Drill Depth by Diameter Ratio IDK IDM IDN IDP Insert 12 Insert Seat Yes Through Coolant
Additional details
Product details
- Feature 4 standard drilling head types for drilling on 4 different material groups
Attributes
- Drill Depth by Diameter Ratio: 5XD
- Drill Size: 12 to 12.9 mm
- Flute Length: 60 mm
- Maximum Drill Depth: 60 mm
- Overall Length: 126.9 mm
- Series: CHAMDRILL JET
- Shank Diameter: 16 mm
- Shank Length: 48 mm
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
