ISCA-3200549

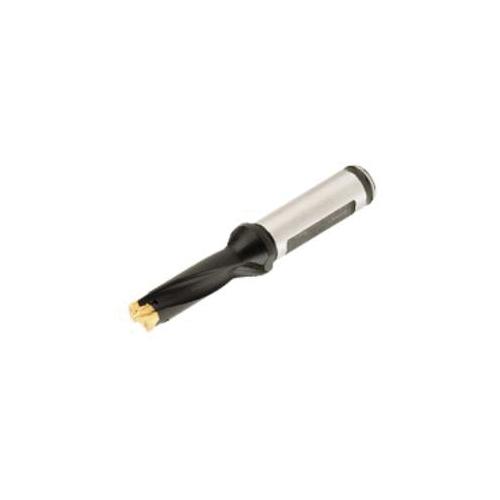

Iscar 3200549 CHAMDRILL Indexable Head Replaceable Tip Drill 0.453 to 0.469 in Drill IDI-SG Insert 3.86 in OAL 3XD Drill Depth by Dia Ratio 11 Insert Seat 5/8 in Dia Shank DCM Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: CHAMDRILL 0.453 to 0.469 in Drill Weldon Flat Shank 5/8 in Shank Diameter 1.89 in Shank Length 1.35 in Flute Length 3.86 in Overall Length DCM Toolholder 1.35 in Maximum Drill Depth 3XD Drill Depth by Diameter Ratio IDI-SG Insert 11 Insert Seat Yes Through Coolant
Additional details
Product details
- FFQ4 D-12 - fast feed face mills carrying single sided inserts with 4 cutting edges
Attributes
- Drill Depth by Diameter Ratio: 3XD
- Drill Size: 0.453 to 0.469 in
- Flute Length: 1.35 in
- Maximum Drill Depth: 1.35 in
- Overall Length: 3.86 in
- Series: CHAMDRILL
- Shank Diameter: 5/8 in
- Shank Length: 1.89 in
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
