ISCA-3200545 product image 0
ISCA-3200545

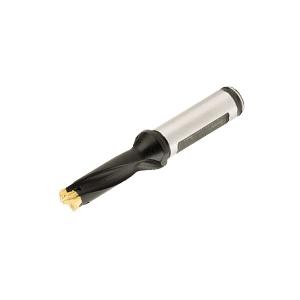

Iscar 3200545 CHAMDRILL Indexable Head Replaceable Tip Drill 0.433 to 0.449 in Drill IDI-SG IDI-SK Insert 3.78 in OAL 3XD Drill Depth by Dia Ratio 11 Insert Seat 5/8 in Dia Shank DCM Toolholder

Product information

Description

Iscar Replaceable Tip Drill Indexable Head Series: CHAMDRILL 0.433 to 0.449 in Drill Weldon Flat Shank 5/8 in Shank Diameter 1.89 in Shank Length 1.3 in Flute Length 3.78 in Overall Length DCM Toolholder 1.3 in Maximum Drill Depth 3XD Drill Depth by Diameter Ratio IDI-SG IDI-SK Insert 11 Insert Seat Yes Through Coolant

LoginRequest an account

Additional details

Attributes

  • Drill Depth by Diameter Ratio: 3XD
  • Drill Size: 0.433 to 0.449 in
  • Flute Length: 1.3 in
  • Maximum Drill Depth: 1.3 in
  • Overall Length: 3.78 in
  • Series: CHAMDRILL
  • Shank Diameter: 5/8 in
  • Shank Length: 1.89 in
  • Shank Type: Weldon Flat
  • Through Coolant (Yes/No): Yes
