ISCA-3200482

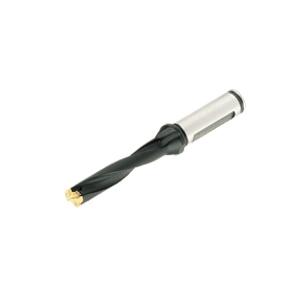

Iscar 3200482 CHAMDRILL Indexable Head Replaceable Tip Drill 0.531 to 0.547 in Drill IDI-SG IDI-SK Insert 5-1/4 in OAL 5XD Drill Depth by Dia Ratio 13 Insert Seat 5/8 in Dia Shank DCM Toolholder

Product information

Description

Iscar Replaceable Tip Drill Indexable Head Series: CHAMDRILL 0.531 to 0.547 in Drill Weldon Flat Shank 5/8 in Shank Diameter 1.89 in Shank Length 2.65 in Flute Length 5-1/4 in Overall Length DCM Toolholder 2.65 in Maximum Drill Depth 5XD Drill Depth by Diameter Ratio IDI-SG IDI-SK Insert 13 Insert Seat Yes Through Coolant

LoginRequest an account

Additional details

Attributes

  • Drill Depth by Diameter Ratio: 5XD
  • Drill Size: 0.531 to 0.547 in
  • Flute Length: 2.65 in
  • Maximum Drill Depth: 2.65 in
  • Overall Length: 5-1/4 in
  • Series: CHAMDRILL
  • Shank Diameter: 5/8 in
  • Shank Length: 1.89 in
  • Shank Type: Weldon Flat
  • Through Coolant (Yes/No): Yes
