ISCA-3200478

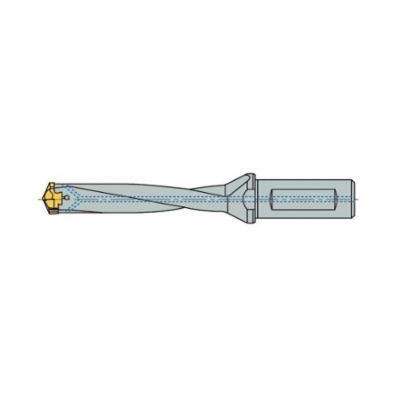

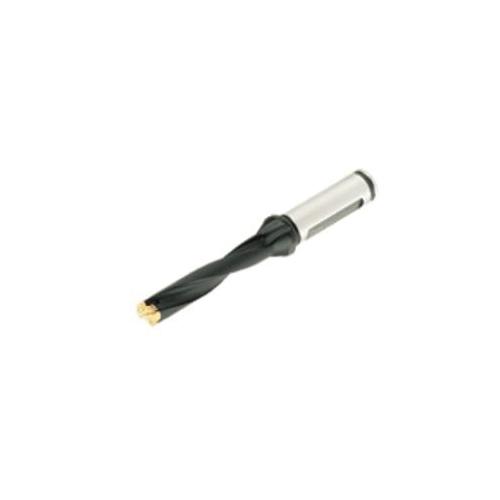

Iscar 3200478 CHAMDRILL Indexable Head Replaceable Tip Drill 0.492 to 0.508 in Drill IDI-SG Insert 5.01 in OAL 5XD Drill Depth by Dia Ratio 12 Insert Seat 5/8 in Dia Shank DCM Toolholder
Product information
Description
Iscar Replaceable Tip Drill Indexable Head Series: CHAMDRILL 0.492 to 0.508 in Drill Weldon Flat Shank 5/8 in Shank Diameter 1.89 in Shank Length 2.46 in Flute Length 5.01 in Overall Length DCM Toolholder 2.46 in Maximum Drill Depth 5XD Drill Depth by Diameter Ratio IDI-SG Insert 12 Insert Seat Yes Through Coolant
Additional details
Product details
- Positive flank Very positive rake angle and sharp cutting edge for machining aluminum IC20 grade used for semi-finishing finishing and semi-roughing of aluminum cast iron and stainless steel
Attributes
- Drill Depth by Diameter Ratio: 5XD
- Drill Size: 0.492 to 0.508 in
- Flute Length: 2.46 in
- Maximum Drill Depth: 2.46 in
- Overall Length: 5.01 in
- Series: CHAMDRILL
- Shank Diameter: 5/8 in
- Shank Length: 1.89 in
- Shank Type: Weldon Flat
- Through Coolant (Yes/No): Yes
