ISCA-3200173

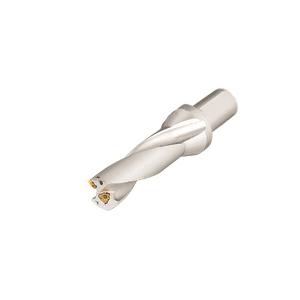

Iscar 3200173 DZDRILLS Indexable Insert Drill 1-7/32 in Drill 1-1/4 in Dia Shank 3XD Drill Depth by Dia Ratio WOLH Insert 7.59 in OAL 3.66 in D Max Drill
Product information
Description
Iscar Indexable Insert Drill Series: DZDRILLS 1-7/32 in Drill 1-1/4 in Shank Dia 2.36 in Shank Length Whistle Notch Shank WOLH Insert 3.66 in Maximum Drill Depth 7.59 in Overall Length 1-7/32 in Dia 3XD Drill Depth by Dia Ratio Insert Compatibility: WOLH-GF WOLH-SW 5.23 in Flute Length No Through Coolant (Yes/No)
Additional details
Product details
- 5.229 in functional length 1.97 in holder diameter ISO Code: DZ1219-3657-125-2.5
Attributes
- Drill Depth by Diameter Ratio: 3XD
- Drill Size: 1-7/32 in
- Flute Length: 5.23 in
- Maximum Drill Depth: 3.66 in
- Overall Length: 7.59 in
- Series: DZDRILLS
- Shank Diameter: 1-1/4 in
- Shank Length: 2.36 in
- Shank Type: Whistle Notch
- Through Coolant (Yes/No): No
