CLEC-16958

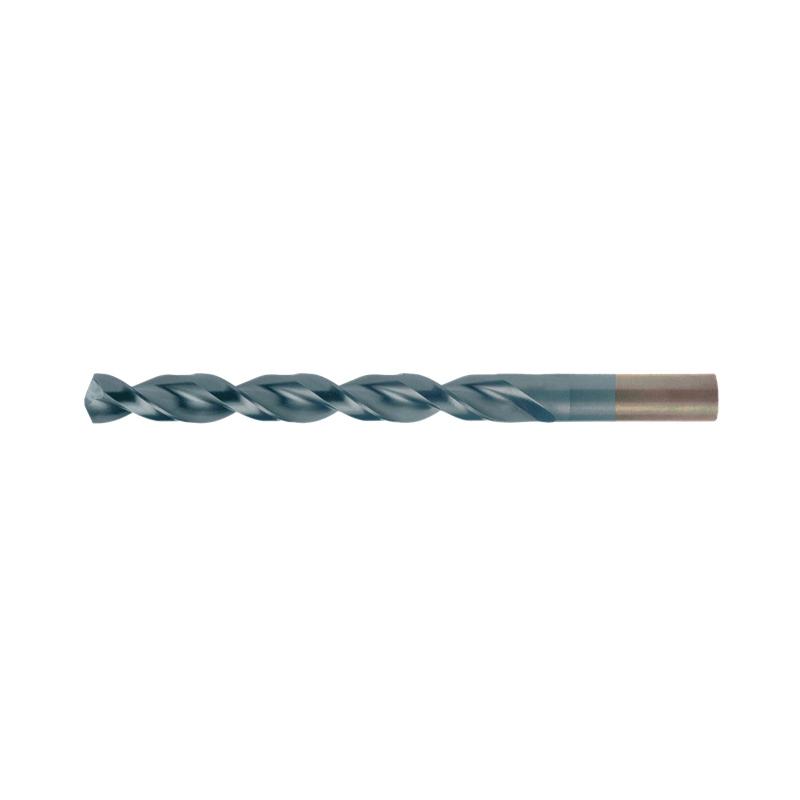

Cleveland® Q-CO" C16958 2075-TC High Performance Jobber Length Drill Bit 13/64 in Drill - Fraction 0.2031 in Drill - Decimal Inch 135 deg Point M42 HSS-Co 8 TiCN Coated
Product information
Description
Cleveland® Q-CO" Jobber Length Drill Bit High Performance Series: 2075-TC Imperial 13/64 in Drill - Fraction 0.2031 in Drill - Decimal Inch 3-5/8 in Overall Length 2-7/16 in Cutting Depth 2 Flutes Right Spiral/Wide Land Parabolic Flute 2-7/16 in Flute Length 13/64 in Dia x 1-3/16 in L Shank Straight Shank 135 deg Point Split Point Right Hand Cutting Direction M42 HSS-Co 8 Cutting Edge No Through Coolant M42 HSS-Co 8 TiCN Coated Applicable Materials: Aluminum Brass Cast Iron High/Low/Medium Carbon Steel Nickel Alloy Stainless Steel and Tool Steel
Additional details
Product details
- Deliver close hole tolerance for high precision work Use higher speeds and feeds for increased productivity 38 deg helix -0.0007 in drill diameter tolerance +/-0.125 in overall length tolerance +/-0.125 in flute length tolerance
Attributes
- Applicable Materials: Aluminum Brass Cast Iron High/Low/Medium Carbon Steel Nickel Alloy Stainless Steel and Tool Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: M42 HSS-Co 8
- Finish: TiCN Coated
- Flute Length: 2-7/16 in
- Material: M42 HSS-Co 8
- Overall Length: 3-5/8 in
- Point Angle: 135 deg
- Point Type: Split
- Shank Type: Straight
