CLEC-16895

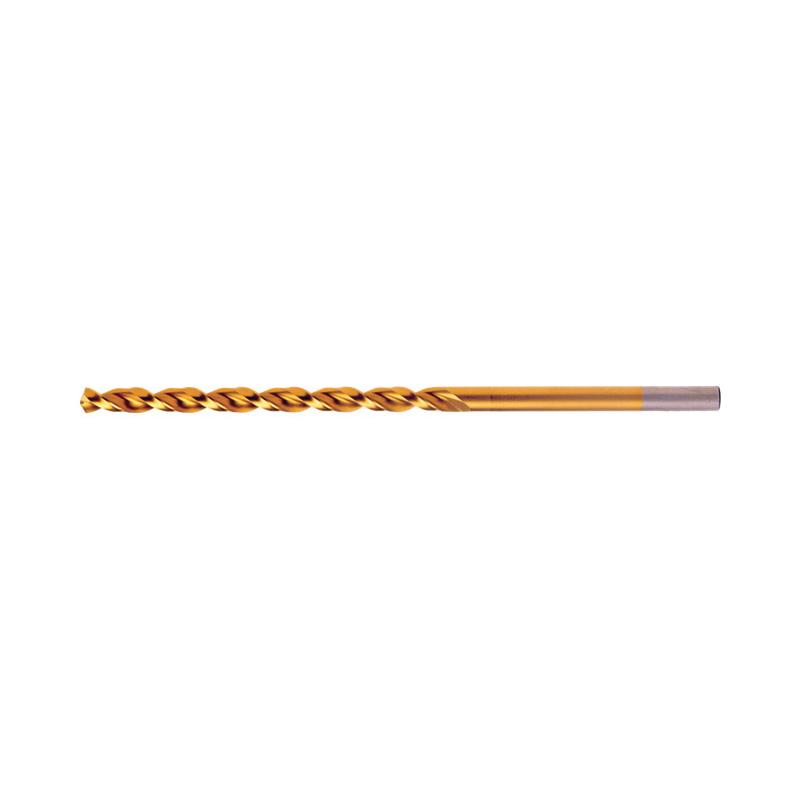

Cleveland® Q-CO" C16895 2575-TN Tapered Length High Performance Drill 7/32 in Drill - Fraction 0.2188 in Drill - Decimal Inch 6 in OAL M42 HSS-Co 8 TiN Coated
Product information
Description
Cleveland® Q-CO" High Performance Drill Tapered Length Series: 2575-TN 7/32 in Drill - Fraction 0.2188 in Drill - Decimal Inch 6 in Overall Length 3-7/16 in Cutting Depth 2 Flutes Spiral/Wide Land Parabolic Flute 3-7/16 in Flute Length 7/32 in Shank Straight Shank 135 deg Point Split Point Right Hand Cutting Direction M42 HSS-Co 8 Cutting Edge M42 HSS-Co 8 TiN Coated Applicable Materials: Aluminum Brass Cast Iron High Carbon Steel Low Carbon Steel Med Carbon Steel Nickel Alloy Plastic Stainless Steel and Tool Steel
Additional details
Product details
- Deliver close hole tolerance for high precision work Use higher speeds and feeds for increased productivity TiN (titanium nitride gold color) coating offers added lubricity and hardness resulting in improved chip flow significantly improved wear life and better finished hole quality TiN coatings are used in a broad range of materials especially ferrous materials typically at as much as 35 greater drilling speeds than uncoated tools 38 deg helix -0.0007 in drill diameter tolerance +/-0.125 in overall length tolerance +/-0.125 in flute length tolerance +/-5 deg point angle tolerance
Attributes
- Applicable Materials: Aluminum Brass Cast Iron High Carbon Steel Low Carbon Steel Med Carbon Steel Nickel Alloy Plastic Stainless Steel and Tool Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: M42 HSS-Co 8
- Finish: TiN Coated

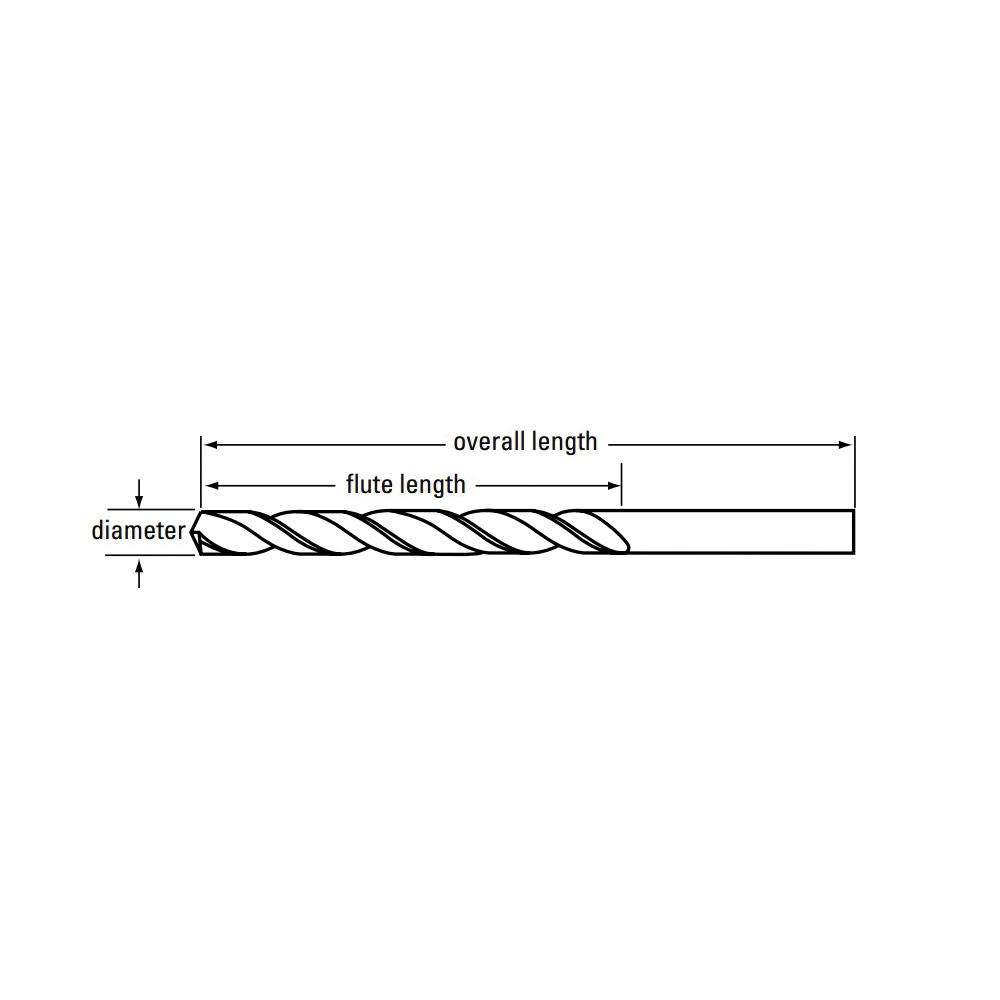

- Flute Length: 3-7/16 in
- Material: M42 HSS-Co 8
- Overall Length: 6 in
- Point Angle: 135 deg
- Point Type: Split
- Shank Type: Straight
