CLEC-16079

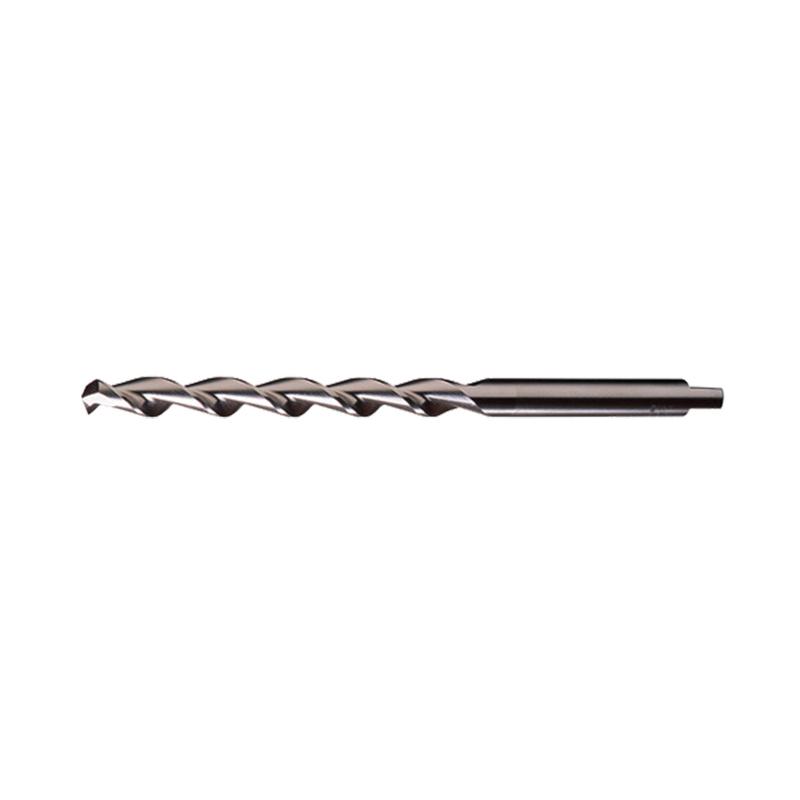

Cleveland® C16079 2565 Tapered Length High Performance Drill 25/64 in Drill - Fraction 0.3906 in Drill - Decimal Inch 7 in OAL HSS Bright
Product information
Description
Cleveland® High Performance Drill Tapered Length Series: 2565 25/64 in Drill - Fraction 0.3906 in Drill - Decimal Inch 7 in Overall Length 14XD Cutting Depth 2 Flutes Parabolic/Spiral Flute 3-7/16 in Flute Length 25/64 in Shank Tanged Shank 118 deg Point Notched Point Right Hand Cutting Direction HSS Cutting Edge HSS Bright Applicable Materials: Aluminum Copper Alloy Free-Mach Stainless Low Carbon Steel Non-Ferrous Materials and Soft Alloy Steel
Additional details
Product details
- Uncoated (bright) series are used in non-ferrous materials 38 deg helix -0.001 in drill diameter tolerance +/-0.125 in overall length tolerance +/-0.125 in flute length tolerance +/-5 deg point angle tolerance
Attributes
- Applicable Materials: Aluminum Copper Alloy Free-Mach Stainless Low Carbon Steel Non-Ferrous Materials and Soft Alloy Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: HSS
- Finish: Bright
- Flute Length: 3-7/16 in
- Material: HSS
- Overall Length: 7 in
- Point Angle: 118 deg
- Point Type: Notched
- Shank Type: Tanged
