CLEC-14935

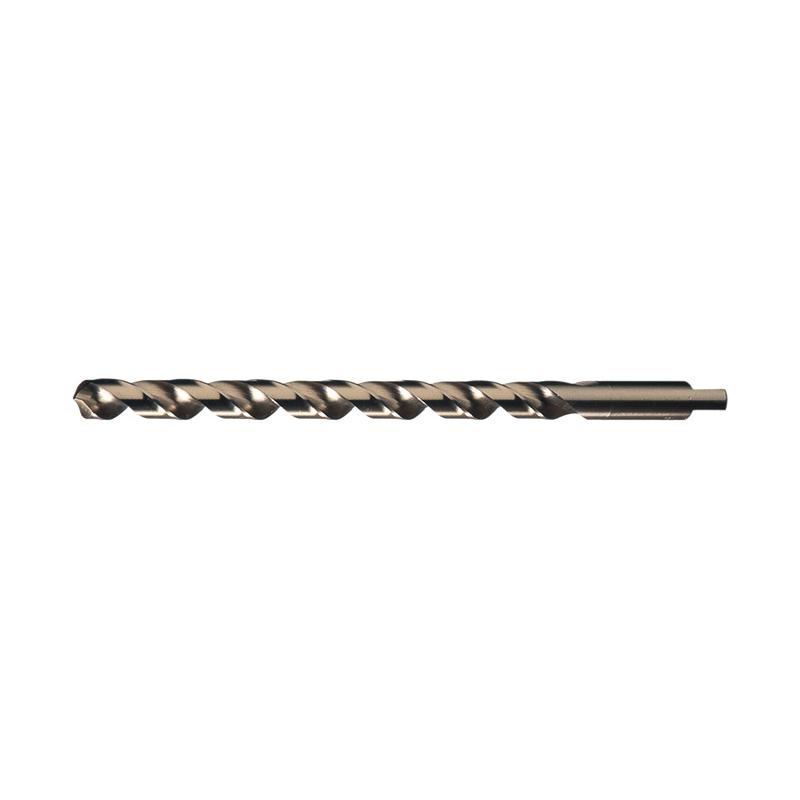

Cleveland® C14935 2513 Heavy Duty Taper Length Drill 7/32 in Drill - Fraction 0.2188 in Drill - Decimal Inch 6 in OAL M42 HSS-Co 8 Straw/Gold Oxide
Product information
Description
Cleveland® Taper Length Drill Heavy Duty Series: 2513 7/32 in Drill - Fraction 0.2188 in Drill - Decimal Inch 6 in Overall Length 3-7/16 in Cutting Depth 2 Flutes Spiral Flute 3-7/16 in Flute Length 7/32 in Shank Straight Shank 118 deg Point Notched Point Right Hand Cutting Direction M42 HSS-Co 8 Cutting Edge M42 HSS-Co 8 Straw/Gold Oxide Applicable Materials: Carbon Steel Cast Iron and Stainless Steel
Additional details
Product details
- High red hardness for extended wear life in high heat conditions 30 deg helix -0.0007 in drill diameter tolerance +/-0.125 in overall length tolerance +/-0.125 in flute length tolerance +/-5 deg point angle tolerance
Attributes
- Applicable Materials: Carbon Steel Cast Iron and Stainless Steel
- Cutting Direction: Right Hand
- Cutting Edge Material: M42 HSS-Co 8
- Finish: Straw/Gold Oxide
- Flute Length: 3-7/16 in
- Material: M42 HSS-Co 8
- Overall Length: 6 in
- Point Angle: 118 deg
- Point Type: Notched
- Shank Type: Straight
